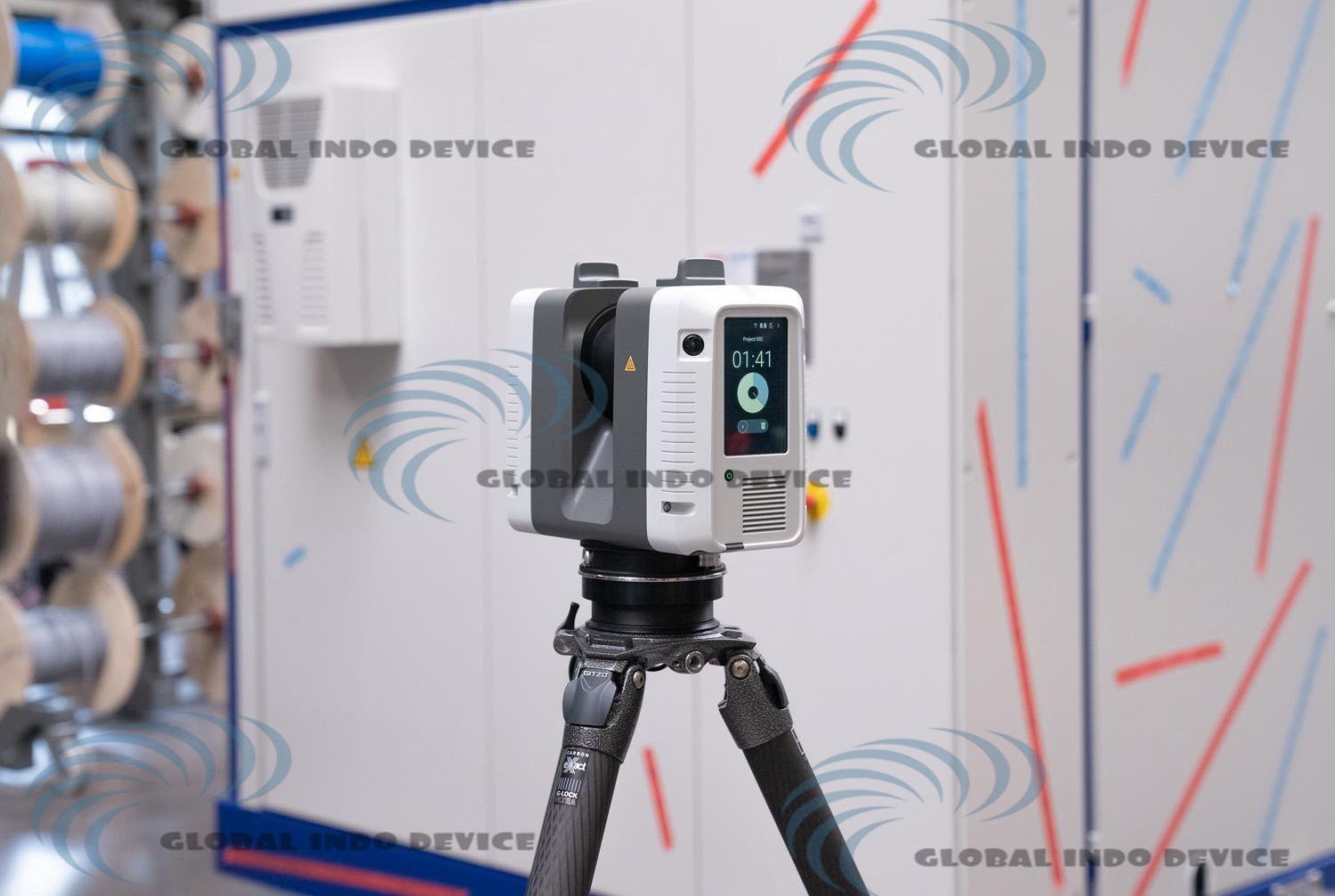

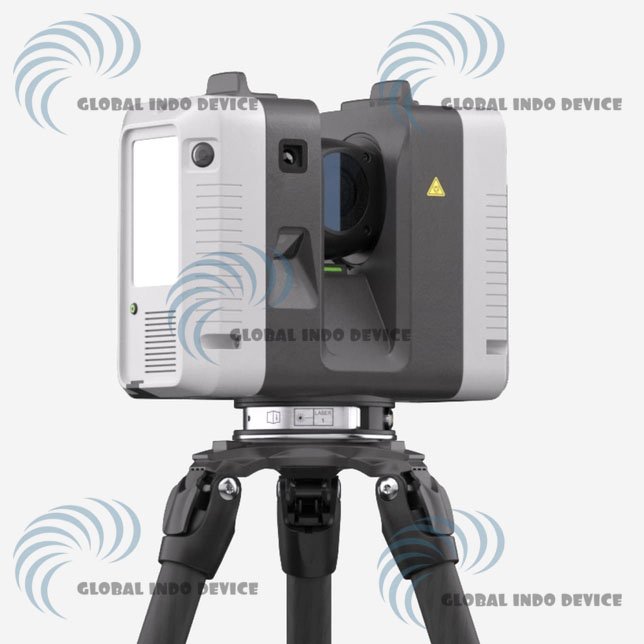

Artec Ray II Laser 3D Scanner
Introduction to Artec Ray II
The Artec Ray II is a high-precision long-range laser 3D scanner designed for professional applications that require extreme accuracy, speed, and reliability. Built for large-scale environments, this advanced scanner delivers exceptional performance for industrial inspection, construction, forensics, and heritage preservation.
With its ability to capture massive objects and environments in high detail, Artec Ray II sets a new standard for long-range 3D scanning technology.
What Is Artec Ray II Used For
Large-Scale 3D Scanning Applications
Artec Ray II is engineered to scan large objects and spaces with minimal setup time. It excels in capturing buildings, vehicles, industrial facilities, and outdoor environments.
High-Accuracy Data Capture
Thanks to its laser-based scanning system, the device provides millimeter-level accuracy even over long distances, making it ideal for engineering-grade measurements and analysis.
Key Features of Artec Ray II
Ultra-Long Range Scanning
Artec Ray II can scan objects and environments from a significant distance while maintaining outstanding accuracy, making it suitable for large infrastructure projects.
High-Speed Laser Scanning
The scanner captures millions of data points per second, allowing users to complete complex scanning tasks efficiently without compromising data quality.
Advanced Visual Tracking System
Equipped with a powerful visual tracking camera, Artec Ray II enhances scan alignment and improves overall data reliability in complex environments.
Robust and Durable Design
Designed for professional fieldwork, Artec Ray II features a rugged construction suitable for both indoor and outdoor scanning conditions.
Benefits of Using Artec Ray II
Increased Productivity
Fast scanning speed and automated workflows reduce project time and labor costs, enabling teams to complete more projects efficiently.
Exceptional Measurement Accuracy
The scanner delivers consistent, high-resolution results that meet demanding professional and industrial standards.
Seamless Software Integration
Artec Ray II integrates smoothly with Artec Studio software, allowing users to process, analyze, and export scan data with ease.
Artec Ray II in Professional Industries
Construction and Architecture
Professionals use Artec Ray II to document buildings, monitor construction progress, and create accurate 3D models for planning and renovation.
Industrial Inspection and Engineering
The scanner supports quality control, reverse engineering, and dimensional analysis for large mechanical components and industrial sites.
Forensics and Accident Reconstruction
Artec Ray II enables precise scene documentation, helping investigators capture accurate spatial data for analysis and reporting.
Cultural Heritage and Preservation
Museums and preservation experts rely on Artec Ray II to digitally archive historical sites and monuments with high accuracy.
Why Choose Artec Ray II Laser 3D Scanner
Reliable Performance for Large Projects
Artec Ray II is designed to handle complex, large-scale scanning tasks with consistent accuracy and stability.
Professional-Grade Results
Its laser scanning technology ensures detailed and reliable 3D data suitable for technical and analytical workflows.
Future-Ready 3D Scanning Solution
With advanced hardware and continuous software support, Artec Ray II remains a long-term investment for professional users.
Specifications
General Overview
| Feature | Specification |
|---|---|
| Product Name | Artec Ray II Laser 3D Scanner |
| Scanner Type | Long-range laser 3D scanning system |
| Technology | Time-of-Flight enhanced by Waveform Digitizing (WFD) technology |
| Scanner Class | Class 1 laser (IEC 60825-1:2014), 1550 nm (invisible) |
Accuracy & Resolution
| Performance Metric | Value |
|---|---|
| 3D Point Accuracy | 1.9 mm @ 10 m / 2.9 mm @ 20 m / 5.3 mm @ 40 m |
| Angular Accuracy | 18 arcseconds (0.87 mm @ 10 m) |
| Range Accuracy | 1.0 mm + 10 ppm |
| Resolution Options | 3 / 6 / 12 mm @ 10 m |
| Range Noise (89% albedo) | 0.4 mm @ 10 m / 0.5 mm @ 20 m |
Field of View & Range
| Parameter | Specification |
|---|---|
| Horizontal FOV | 360° |
| Vertical FOV | 300° |
| Scanning Range | 0.5 m – 130 m |
Scanning Speed & Performance
| Metric | Value |
|---|---|
| 3D Capture Rate | Up to 2,000,000 points/sec |
| Full Dome Scan Time (No Texture @ 10 m) | 1:42 @ 3 mm / 0:51 @ 6 mm / 0:26 @ 12 mm |
| Full Dome Scan Time (With Texture @ 10 m) | 2:42 @ 3 mm / 1:51 @ 6 mm / 1:26 @ 12 mm |
Color Capture & Imaging
| Feature | Description |
|---|---|
| Camera System | 36 MP (3 cameras) capturing 432 MPx raw data for 360° × 300° calibrated spherical image |
| HDR Imaging | Automatic, 5 bracket exposures |
Software & Algorithms
| System | Features |
|---|---|
| Real-Time Registration | Automatic point cloud alignment via Visual Inertial System (VIS) |
| Moving Object Removal | Smart double scan removal of unwanted moving objects |
| Field Check & Adjust | Targetless angle parameter checking in field conditions |
Navigation & Sensors
| Sensor | Function |
|---|---|
| Visual Inertial System (VIS) | Tracks real-time movement for precise registration |
| Inclinometer (IMU) | ±10° tilt compensation with high accuracy |
| Geolocation Sensors | Altimeter, compass & GNSS support |
Hardware & Communications
| Feature | Specification |
|---|---|
| Wireless | Integrated Wi-Fi (802.11 b/g/n) |
| Data Storage | 256 GB removable USB 3.0 flash drive |
Physical & Power Specs
| Specification | Detail |
|---|---|
| Dimensions (W × D × H) | 120 × 240 × 230 mm (4.7″ × 9.4″ × 9.1″) |
| Weight | 5.35 kg (11.7 lb) without batteries |
| Mounting | Quick-mount 5/8″ tripod mount |
| Internal Battery | 2 × Li-Ion AEB364 rechargeable batteries (up to ~4 h) |
| External Power | GEV282 AC adapter supported |
Environmental & Operational Conditions
| Condition | Specification |
|---|---|
| Operating Temp. | -5 °C to +40 °C |
| Extended Cold Use | Down to -10 °C with proper internal temp procedures |
| Storage Temp. | -40 °C to +70 °C |
| Dust & Water Protection | IP54 rated (IEC 60529) |
Summary
This comprehensive specification sheet highlights why the Artec Ray II is a professional-grade long-range laser 3D scanner, offering industry-leading range, accuracy, speed, and versatility for large object scanning, construction, inspection, forensics, and industrial applications.
