Hitachi X-MET8000 Handheld XRF Analyzer

Overview of Hitachi X-MET8000 Handheld XRF Analyzer

The Hitachi X-MET8000 Handheld XRF Analyzer is a high performance portable analytical instrument designed for fast and accurate elemental analysis in industrial environments. Built for durability and ease of use, this handheld XRF analyzer supports on-site material identification without the need for laboratory testing.

Developed by Hitachi High-Tech Analytical Science, the X-MET8000 series combines advanced X-ray fluorescence technology with rugged construction to meet the demands of field inspection, recycling, manufacturing, and quality control applications.

What Is a Handheld XRF Analyzer

A handheld XRF analyzer is a portable device that uses X-ray fluorescence technology to identify and quantify elements within a material. This non-destructive method allows users to obtain reliable chemical composition data in seconds directly at the inspection site.

Handheld XRF analyzers are widely used in industries that require rapid material verification, compliance testing, and alloy identification.

Key Features of Hitachi X-MET8000

Advanced XRF Technology

The Hitachi X-MET8000 uses energy dispersive XRF technology to deliver accurate elemental analysis across a wide range of materials. Its high resolution detector ensures reliable detection of major and minor alloying elements.

Rugged and Portable Design

Designed for demanding environments, the X-MET8000 features a robust housing that resists dust, moisture, and mechanical shock. The ergonomic handheld form allows comfortable one-handed operation during extended inspection tasks.

Fast and Reliable Results

The analyzer provides rapid results within seconds, enabling efficient decision-making in time-critical operations. This speed makes it ideal for high throughput material screening and inspection workflows.

Applications of Hitachi X-MET8000 Handheld XRF Analyzer

Positive Material Identification

The X-MET8000 is widely used for positive material identification to verify alloy grades and ensure compliance with industry standards in maintenance and safety-critical industries.

Scrap Metal Sorting and Recycling

In recycling facilities, the analyzer supports fast alloy sorting and material separation, improving recovery efficiency and reducing contamination risks.

Manufacturing Quality Control

Manufacturers rely on the X-MET8000 for incoming material inspection, in-process quality control, and final product verification.

Precious Metal and Compliance Testing

The analyzer is also suitable for precious metal screening and regulatory compliance testing across various industries.

Advantages of Using Hitachi X-MET8000

Non-Destructive Analysis

The XRF method does not damage samples, allowing repeated testing without altering the material.

On-Site Testing Capability

Portable operation eliminates the need to send samples to laboratories, reducing downtime and operational costs.

User-Friendly Interface

The intuitive touchscreen interface allows operators to perform tests quickly with minimal training.

Data Management and Connectivity

Efficient Data Storage

The Hitachi X-MET8000 stores a large number of test results, including elemental composition and spectra, supporting traceability and reporting requirements.

Seamless Data Transfer

Multiple connectivity options allow easy data export to computers and reporting systems for further analysis and documentation.

Safety and Compliance

Built-In Radiation Safety

Integrated shielding and safety interlocks protect operators during use while complying with international radiation safety standards.

Secure User Access

Password protection and user management features help maintain data integrity and controlled operation.

Why Choose Hitachi X-MET8000 Handheld XRF Analyzer

The Hitachi X-MET8000 Handheld XRF Analyzer offers a balanced combination of accuracy, speed, and durability. Its ability to deliver laboratory-quality results in the field makes it a reliable solution for industries that demand precise material identification and consistent performance.

Specifications:

Analyzer

– Handheld EDXRF analyser.
– Large area, high resolution Silicon Drift (SDD) detector.
– Rh target X-ray tube (4 W; 50 kV max., 200 μA max.).
– Automatic 6-position filter changer.
– Measurement spot size: 10.7 mm x 9.4 mm.
– Operating temperature: -10 °C to +50 °C.

Screen and operating system

– 4.3” Blanview touch screen.
– Display resolution: 480 (H) x 800 (V) dots.
– 16 GB internal memory.
– Capable of holding 100,000 results with spectra and images (if camera fitted).
– Bluetooth, WiFi and USB data transfer.
– Graphical user interface available in 13 languages: Chinese traditional and simplified, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Spanish and Russian.

Calibration

– Factory-loaded robust fundamental parameters (FP) and empirical calibrations (traceable to certified reference materials) available for a wide variety of applications (e.g. alloys, RoHS, wood, car catalysts…).
– Customer specific calibrations with optional calibration software.

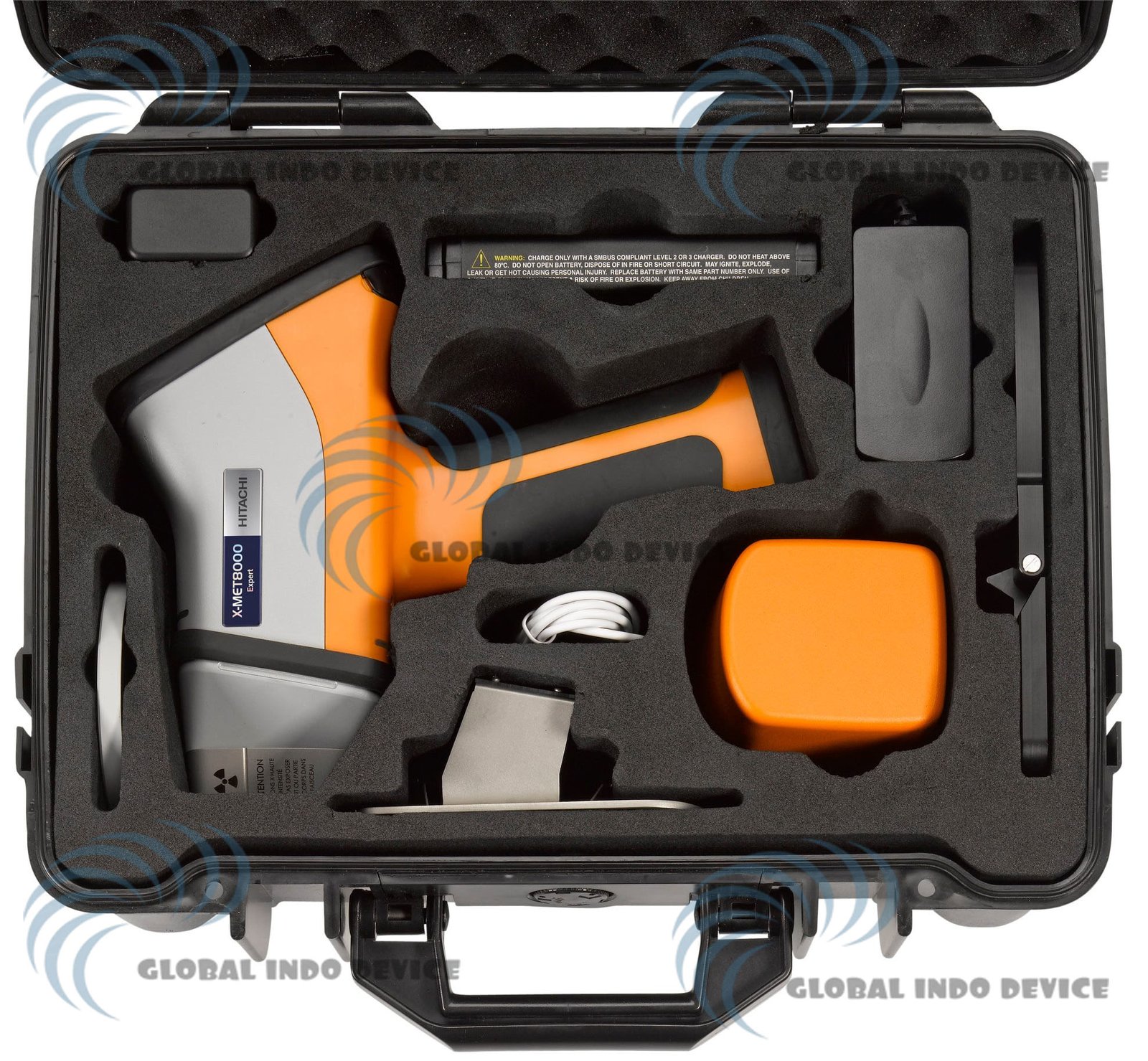

Package includes:

– Hitachi X MET 8000 Expert geo.
– Check sample.
– Battery charger, with UK, US, Euro and Australia plug adapters (charging time: ~8 hours).
– Two Li-ion batteries.
– USB cable.
– USB memory stick containing the User Manual and the Safety Manual (available in 13 languages).
– Light travel stand with safety shield.
– Light radiation shield.
– Background plate.
– Holster and belt.
– WiFi and Bluetooth connectivity.
– Warranty card
– Calibration Certificate

Warranty Information
2 Years
