Waygate Technologies Mentor UT Phased Array Flaw Detector

The Waygate Technologies Mentor UT Phased Array Flaw Detector is a high-performance ultrasonic testing device designed for precision inspection of critical components. It combines advanced phased array technology with user-friendly interfaces to provide accurate detection of flaws and defects in metals, welds, and composite materials. Therefore, it is widely used in aerospace, energy, manufacturing, and industrial inspection applications.

Overview of the Mentor UT Phased Array Flaw Detector

The Mentor UT Flaw Detector delivers reliable ultrasonic testing capabilities for both experienced technicians and engineers. Moreover, it supports high-resolution imaging, real-time data analysis, and intuitive operation, which improves inspection efficiency and accuracy. As a result, organizations can ensure structural integrity and compliance with industry standards.

Advanced Phased Array Technology

By employing phased array ultrasonic testing (PAUT), the Mentor UT allows users to inspect complex geometries with high precision. Consequently, it can detect internal flaws that conventional ultrasonic devices might miss. In addition, this technology enables precise sizing and characterization of defects, enhancing overall quality control.

Intuitive User Interface

The device is designed with an interactive touchscreen and customizable menus. Therefore, operators can quickly adjust scanning parameters, review results, and generate reports. This simplicity reduces training requirements while maintaining professional-level testing capabilities.

Key Features of the Mentor UT Flaw Detector

The Mentor UT combines cutting-edge hardware with intelligent software to optimize inspection workflows. Its features improve productivity, data accuracy, and usability across multiple inspection scenarios.

High-Resolution Imaging

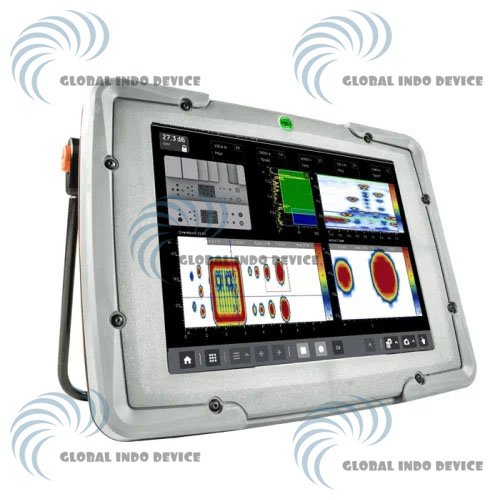

The phased array system produces detailed images of internal structures, helping identify flaws, cracks, and voids. Moreover, high-resolution imaging supports accurate flaw sizing and depth measurement, which is crucial for safety-critical inspections.

Real-Time Data Analysis

With real-time signal processing, the Mentor UT displays inspection results instantly. Consequently, operators can make informed decisions immediately, reducing the need for repeated scans. In addition, it streamlines defect documentation and reporting processes.

Versatile Connectivity and Data Management

The device supports multiple file formats, wireless data transfer, and integration with inspection management software. Therefore, teams can share results efficiently, collaborate remotely, and maintain comprehensive records for audits or regulatory compliance.

Applications Across Industries

The Mentor UT Phased Array Flaw Detector is highly versatile and serves various sectors that require precise flaw detection and quality assurance.

Aerospace and Aviation

In aerospace, the device inspects critical components such as turbine blades, fuselage joints, and composite panels. Consequently, it helps ensure the highest safety standards and compliance with strict industry regulations.

Energy and Power Generation

Power plants and energy facilities rely on the Mentor UT to examine pipelines, pressure vessels, and structural components. Moreover, early detection of flaws prevents costly downtime and ensures operational safety.

Manufacturing and Industrial Inspection

Manufacturers use the Mentor UT to monitor production quality, detect defects in welded joints, and verify material integrity. As a result, it reduces material waste and improves overall product reliability.

Oil and Gas Sector

The phased array flaw detector is used in pipelines, storage tanks, and refineries to prevent failures. In addition, it supports inspection schedules for maintenance and safety compliance.

Advantages of Using the Mentor UT Phased Array Flaw Detector

Investing in the Mentor UT provides significant benefits that enhance inspection quality and operational efficiency.

Accurate and Reliable Flaw Detection

Phased array technology ensures precise detection of even small defects. Therefore, engineers and inspectors can trust the results for safety-critical decisions.

Increased Productivity and Efficiency

Real-time imaging, intuitive controls, and seamless data management reduce inspection time and minimize errors. Consequently, teams can complete inspections faster without compromising quality.

Future-Proof Inspection Solution

The Mentor UT’s software and hardware updates allow it to adapt to evolving industry standards. Moreover, its data integration capabilities support long-term digital inspection workflows, enabling continuous improvement in quality assurance.

Benefits

– Conveniently upload & analyze your inspection data on your computer
– User-defined menus walk technicians through every step of any inspection
– Flexibility to load multiple workflows on one device
– Remote communication between experts and inspector

Features

– Remote calibration-capable
– High-performance design
– Rugged durability
– Intuitive operation

Applications

Customize or create inspection “apps” for your unique testing procedures, industry applications, and experience levels.

Mentor UT Features

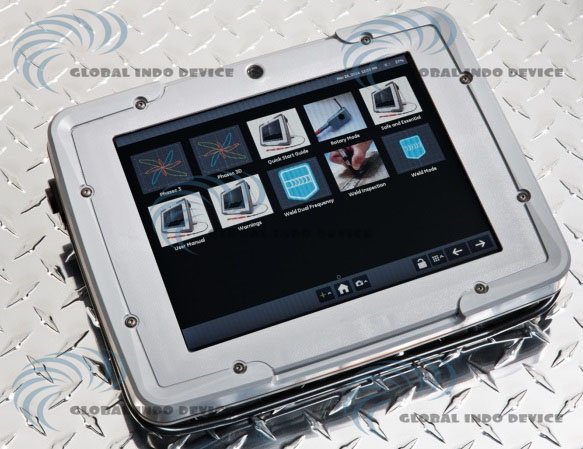

Mentor UT was designed around user needs. Its intuitive glove-friendly touch screen and a durability rating of IP65allow for more accurate and efficient inspections, under any industrial conditions.

Perform inspections confidently using Mentor UT’s powerful 32:32 phased array flaw detector (upgradable to 32:128)with conventional UT channel and 18kHz pulse repetition frequency (PRF).

Ensure that UT inspections are performed consistently every time by custom-tailoring workflows (apps) to guide users through the calibration and inspection process step by step. On-board wireless connectivity and data export capabilities streamline one-touch reporting and analysis (offline analysis software included).

On-demand live support empowers inspectors to make on the spot maintenance decisions anywhere, anytime.

Mentor UT also features unmatched probe versatility. Choose from commonly found Tyco or Ipex probe connection options, or industry-standard Phasor-style connector for improved probe compatibility.

This device also easily pairs with Waygate Technologies’ industry-leading dual-element linear DM probes for corrosion inspection, linear array probes for weld testing and composite inspection, as well as a wide variety of commercially available scanners.

Specifications :

Physical

Dimensions (W x H x D)
295 mm x 230 mm x 60 mm (12″ x 9.4″ x 2.4″)

Weight (with battery)
2.9 kg (6.5 lbs)

Display

Size
264 mm (10.4″) diagonal

Resolution
1024 x 768 pixels

Mode
Indoor and outdoor specific color modes

Viewing Angle
± 85˚ all directions

Touch Screen (Multi-touch)

Gloved Operation
Yes

Surface
Chemically strengthened glass, scratch resistant, chemical resistant, optically bonded to display

Data Storage

Solid State Hard Drive
128 GB

USB Storage
USB 2.0 w included module

Data Capture
Full ASCAN capture for every CSCAN point, all settings. Recall on instrument with full analysis capability

Data Files
memd files, CSV files

Settings Files
All instrument settings plus position in workflow

Screen Capture
JPG Format

Report
PDF Format

Connectivity

Wi-Fi
802.11 b, g, n

Connectors
USB 2.0, Ethernet, HDMI

Remote Collaboration
Local Network and Internet-Enabled via InspectionWorks Connect

InspectionWorks
Enabled

I/O

Axes
2 digital quadrature encoders for X-Y axes

Audible
Tone, 2.7 kHz

Power

Internal Battery
63 WH Lithium Ion

External Battery
84 WH Lithium Ion

Power Supply
100 to 240 VAC, 47–63 Hz, 1.9 A; 12VDC

Battery Life
3 hrs internal, 6 hrs with external battery under typical operating conditions

Compliance
Meets IATA air transport regulations with one contained installed battery and one packed external battery

Environmental

Operating Temperature
-20C to +55 C (-4F to 131F) to MIL-STD-810G Method 501.5 & 502.5, Procedure I

Storage Temperature
-20C to +70C (-4F to 158F) to MIL-STD-810G Method 501.5 & 502.5, Procedure II

Ingress Protection
Tested to IP65

Shock
4’ Transit Drop to MIL-STD-810G method 516.6, Procedure V

INCLUDED :

Mentor UT with Installed Applications
Encoder Module with USB and X & Y Encoder Inputs
Lithium Ion (Installed) Rechargeable Battery Pack
External Battery Pack
Lithium Ion Battery Charger /AC Power Supply

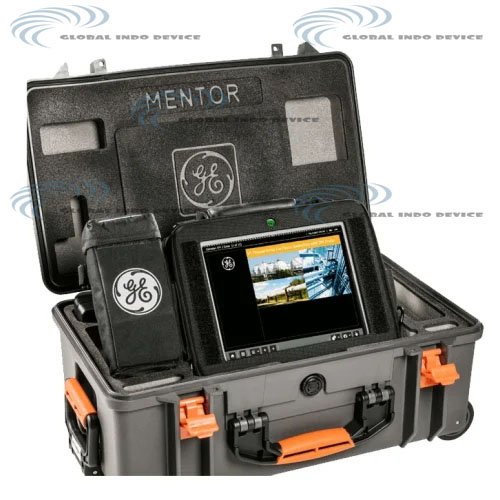

Transport Case
Soft Case
Quick Start Operating Card
Operating Manual on USB
Mentor Create Software on USB

Warranty Information
2 Years
