Easy-Laser XT770 Laser Alignment System: Versatile Shaft Alignment for Industrial Maintenance

Introduction to Easy-Laser XT770

The Easy-Laser XT770 Laser Alignment System is a powerful and flexible solution designed to solve a wide range of alignment and measurement challenges across industrial machinery. Built for reliability and ease of use, this system enables maintenance professionals to perform accurate shaft alignment, condition checks, and long-term machine monitoring.

What is the Easy-Laser XT770 System?

Comprehensive Alignment Solution

The XT770 is engineered to handle alignment tasks for various machine types, including horizontally and vertically mounted equipment, as well as complex machine trains with multiple units.

Designed for Efficiency and Accuracy

With advanced sensor technology and intuitive software, the system ensures precise results while simplifying the alignment process.

Key Functions of Easy-Laser XT770

Shaft Alignment

• Align horizontal and vertical/flange-mounted machines
• Handle multi-machine alignment with unlimited configurations
• Multiple measurement methods including continuous sweep and multipoint

Machine Condition Checks

• Soft foot detection and correction
• Base twist measurement
• Bearing play analysis
• Monitoring machine movement over time

Dynamic Measurement Capability

Using the EasyTrend program, users can track machine movement during operation. This feature is essential for identifying thermal expansion, pipe strain, and other dynamic factors affecting machine alignment.

Advanced Measurement Technology

360° Live Adjustment with 2-Axis PSD

The system utilizes dual-axis position-sensitive detectors (PSDs), allowing simultaneous horizontal and vertical adjustments. This feature enables real-time alignment corrections from any measurement position.

Flexible Measurement Methods

Multiple alignment techniques provide flexibility to adapt to different machine configurations and working conditions, ensuring optimal results.

Measuring Units XT70-M / XT70-S

High-Precision Performance

• 2-axis TruePSD technology with unlimited resolution
• Measurement accuracy: ±1 µm ±1%
• Resolution: 0.001 mm

Durable and Reliable Design

• Robust aluminum housing
• IP66/67 protection against dust and water
• Built-in wireless communication
• OLED display for angle positioning

Long Operating Time

The measuring units offer up to 24 hours of continuous operation, supporting extended fieldwork without interruption.

Display Unit XT12

Rugged Industrial Tablet

• 8-inch capacitive multi-touch display
• Glove-enabled touchscreen for easy operation
• IP66/67 dustproof and waterproof design
• Built-in 13 MP camera for documentation
• Optional IR camera for thermal imaging

User-Friendly Interface

• Step-by-step guidance through alignment procedures
• Wireless connectivity and data management
• Battery life up to 16 hours

Bore Alignment Capability (Optional)

The XT770 can be expanded for bore alignment using the Bore Center program and additional accessories such as the XT24 laser transmitter and bore bracket kit. This allows accurate alignment of cylindrical components and smaller bore diameters.

Key Features of Easy-Laser XT770

• Built-in wireless technology
• Dual laser beams with PSD sensors
• Slideable targets for flexible measurement
• Sturdy aluminum construction
• Long battery life for extended operation

Applications of Easy-Laser XT770

Industrial Maintenance

Ensures proper alignment of motors, pumps, and rotating equipment, reducing wear and downtime.

Manufacturing and Production

Supports preventive maintenance and quality control processes.

Power Generation

Maintains alignment of turbines and generators to ensure optimal performance.

Oil and Gas Industry

Improves reliability of critical equipment in demanding environments.

Benefits of Using Easy-Laser XT770

Increased Equipment Reliability

Accurate alignment reduces vibration and extends machine lifespan.

Reduced Maintenance Costs

Early detection of alignment issues prevents costly repairs.

Improved Efficiency

Fast and precise alignment minimizes downtime and boosts productivity.

Versatile Functionality

Handles multiple measurement tasks with a single system.

Technical Specifications Overview

Display Unit XT12

• 8” multi-touch display
• Wireless and WiFi connectivity
• Operating time up to 16 hours
• IP66/67 environmental protection

Measuring Units XT70

• Resolution: 0.001 mm
• Accuracy: ±1 µm ±1%
• Measurement range up to 20 m
• Operating time up to 24 hours

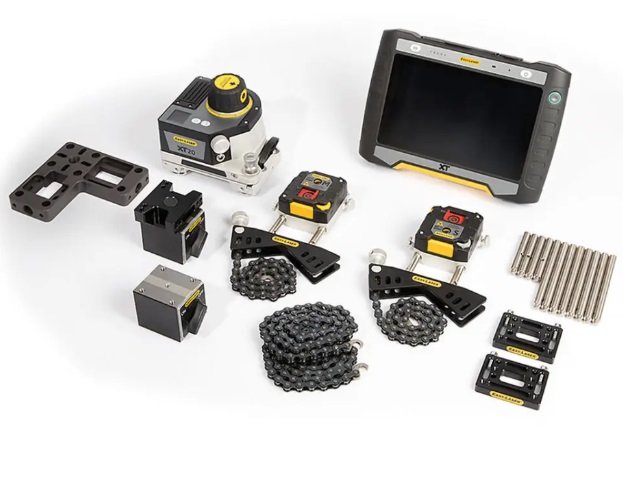

Package Includes

• Measuring units XT70-M and XT70-S
• XT12 display unit
• Shaft brackets with chains and rods
• Magnetic bases and offset brackets
• Extension chains and measuring tools
• Charging equipment and cables
• Documentation and USB storage

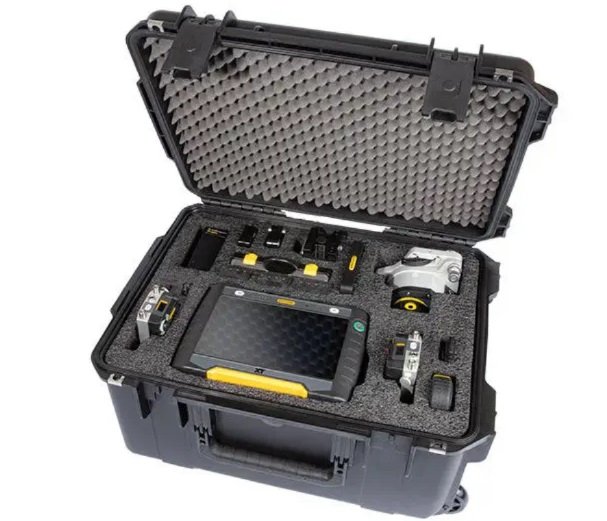

• Durable carrying case

Why Choose Easy-Laser XT770 Laser Alignment System

The XT770 stands out as a reliable and versatile alignment solution. Backed by the expertise of Easy-Laser, it offers precision, flexibility, and durability for professionals who require efficient alignment and measurement tools.

Warranty Information
2 Years
