Easy-Laser XT950 Laser Alignment System: Precision Bore Alignment for Industrial Machinery

Introduction to Easy-Laser XT950 Bore Alignment System

The Easy-Laser XT950 Laser Alignment System is a specialized solution designed for high-precision bore alignment and geometric measurement. Engineered for demanding industrial environments, this system enables accurate alignment of bore center lines, bearing journals, and cylindrical components in equipment such as engines, compressors, and gearboxes.

What is Bore Alignment?

Understanding Bore Center Line Measurement

Bore alignment focuses on ensuring that multiple cylindrical components share a common center line. Misalignment can lead to excessive wear, vibration, and reduced machine efficiency.

Importance of Accurate Bore Alignment

• Extends equipment lifespan
• Reduces vibration and mechanical stress
• Improves operational efficiency
• Minimizes costly downtime and repairs

Key Features of Easy-Laser XT950

High-Precision Bore Measurement

The XT950 delivers exceptional accuracy with a resolution of 0.001 mm, ensuring reliable alignment over long distances up to 40 meters.

Wide Measurement Range

Designed to measure bore diameters from 80 mm to 500 mm, making it suitable for a wide range of industrial applications.

Flexible Mounting System

Multiple brackets and magnetic mounting options allow easy installation in bores of varying sizes, ensuring stable and precise measurements.

Intelligent Measurement Software

The Bore Center program within the XT app guides users step-by-step through the measurement process, automatically calculating positions and alignment conditions.

Advanced Data Analysis

Users can evaluate results using different best-fit calculation methods, define reference points, and set tolerance limits for accurate decision-making.

Measurement Technology

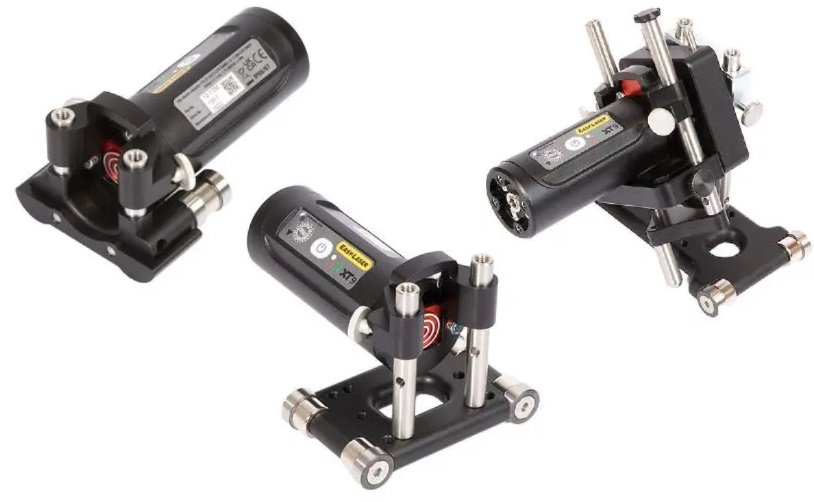

XT9 Detector with Slide Brackets

• 2-axis PSD detector for precise measurement
• Resolution: 0.001 mm
• Accuracy: ±1 µm ±1%
• Thermal sensor for temperature monitoring
• Wireless communication for seamless operation

XT24 Laser Transmitter

• Fiber-coupled diode laser for high beam quality
• Measurement range up to 40 m
• Fine adjustment for horizontal and vertical alignment
• Flexible mounting with adjustable magnetic arms

Display Unit XT12

Rugged Industrial Tablet

• 8-inch capacitive multi-touch display
• Glove-enabled touchscreen for field use
• IP66/67 protection against dust and water
• Built-in 13 MP camera for documentation
• Optional IR camera for thermal imaging

User-Friendly Interface

• Step-by-step guided workflows
• Wireless connectivity and data storage
• Up to 16 hours operating time

Key Advantages of XT950 System

High Accuracy Over Long Distances

The system maintains precision across extended measurement ranges, making it suitable for both workshop and field applications.

Versatile Setup Options

Flexible brackets and mounting accessories allow adaptation to different bore sizes and configurations.

Reliable and Durable Design

Constructed with robust materials and sealed to IP66/67 standards, ensuring long-term performance in harsh environments.

Efficient Workflow

Automated calculations and intuitive software reduce setup time and improve productivity.

Applications of Easy-Laser XT950

Engine and Compressor Alignment

Ensures proper alignment of internal components to reduce wear and improve performance.

Gearbox and Bearing Inspection

Accurately measures bearing journals and alignment conditions for reliable operation.

Industrial Maintenance

Supports preventive maintenance by detecting misalignment early.

Manufacturing and Installation

Used during assembly and installation to ensure correct alignment of critical components.

Technical Specifications Overview

Display Unit XT12

• 8” multi-touch display
• Wireless and WiFi connectivity
• Operating time up to 16 hours
• IP66/67 environmental protection

Detector XT9

• Resolution: 0.001 mm
• Accuracy: ±1 µm ±1%
• Built-in thermal sensor
• Wireless communication

Laser Transmitter XT24

• Laser type: Fiber-coupled diode
• Range: Up to 40 m
• Beam straightness: ±0.001 mm
• Operating time: Up to 24 hours

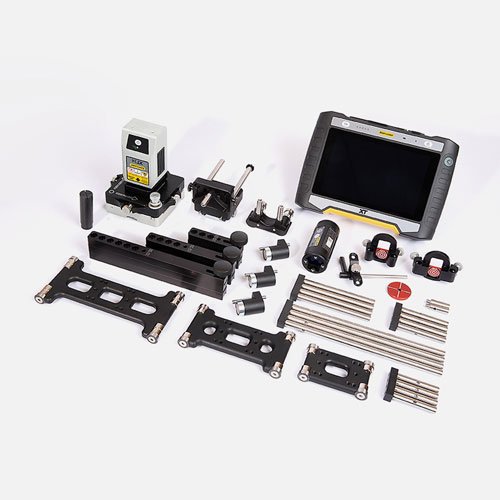

Package Includes

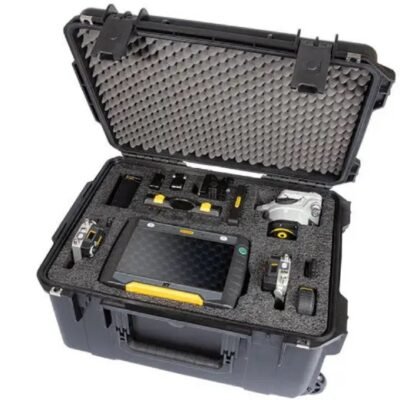

• XT24 laser transmitter
• XT9 detector

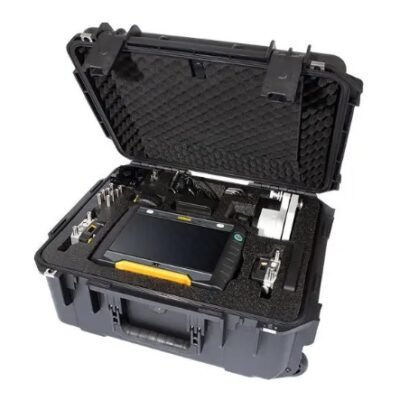

• XT12 display unit
• Slide brackets (small, medium, large)
• Magnetic mounting accessories
• Rod sets and adapters
• Charging equipment and cables
• Measuring tools and documentation

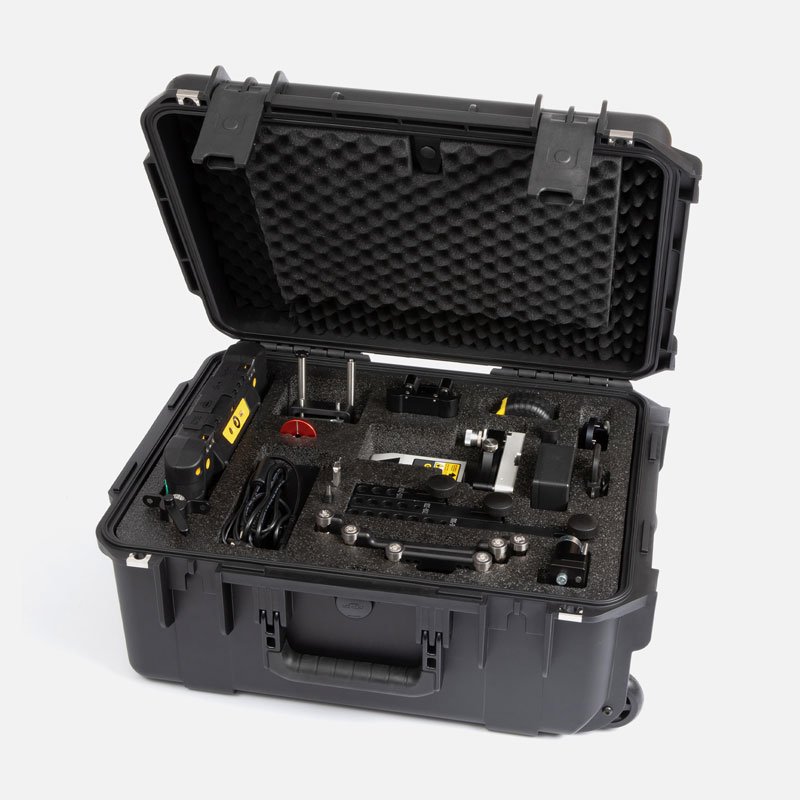

• Durable carrying case

Why Choose Easy-Laser XT950 Bore Alignment System

The XT950 is a powerful solution for professionals requiring precise bore alignment and geometric measurement. Backed by the expertise of Easy-Laser, it offers advanced technology, robust construction, and user-friendly operation for accurate and efficient alignment tasks.

Warranty Information
2 Years
