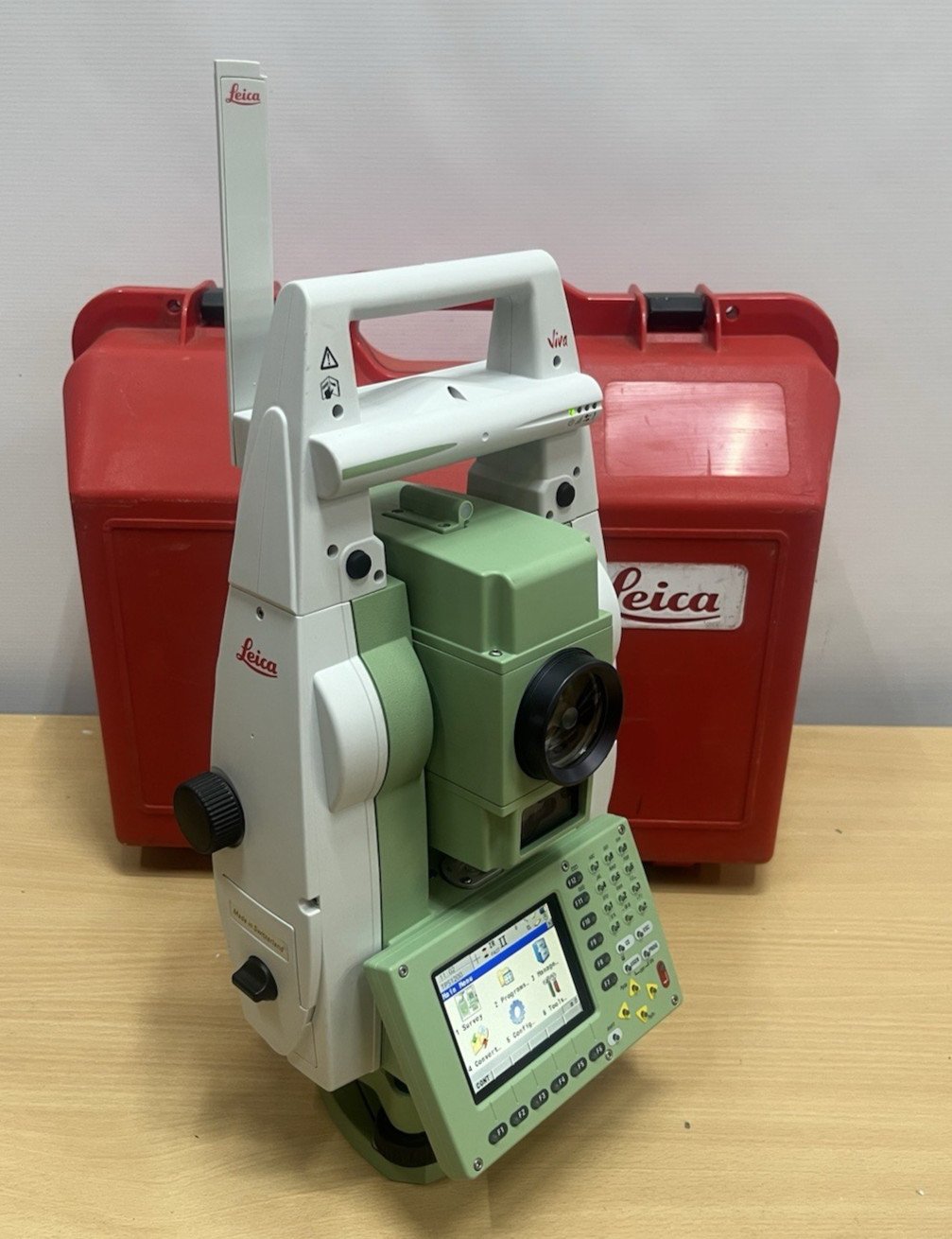

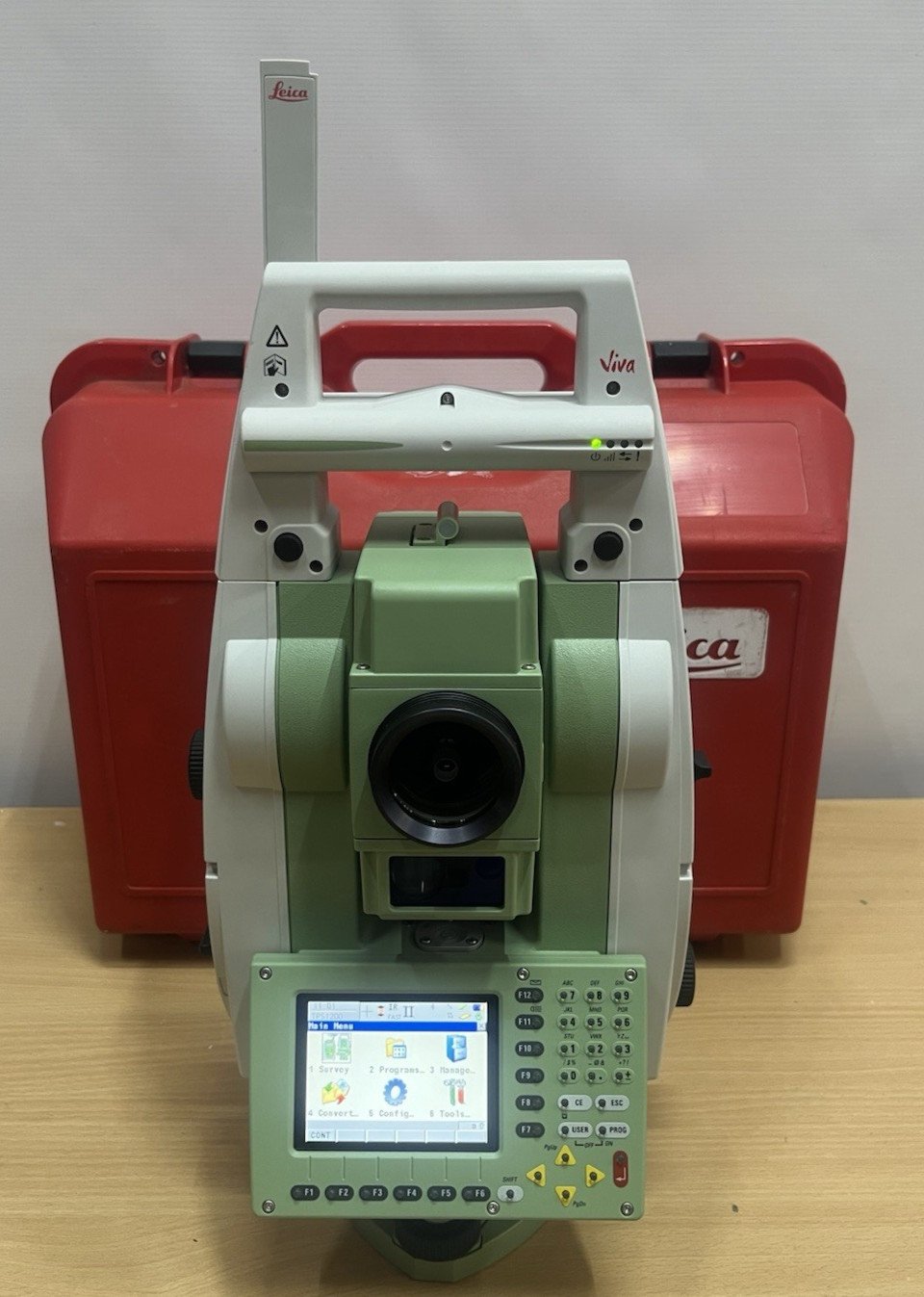

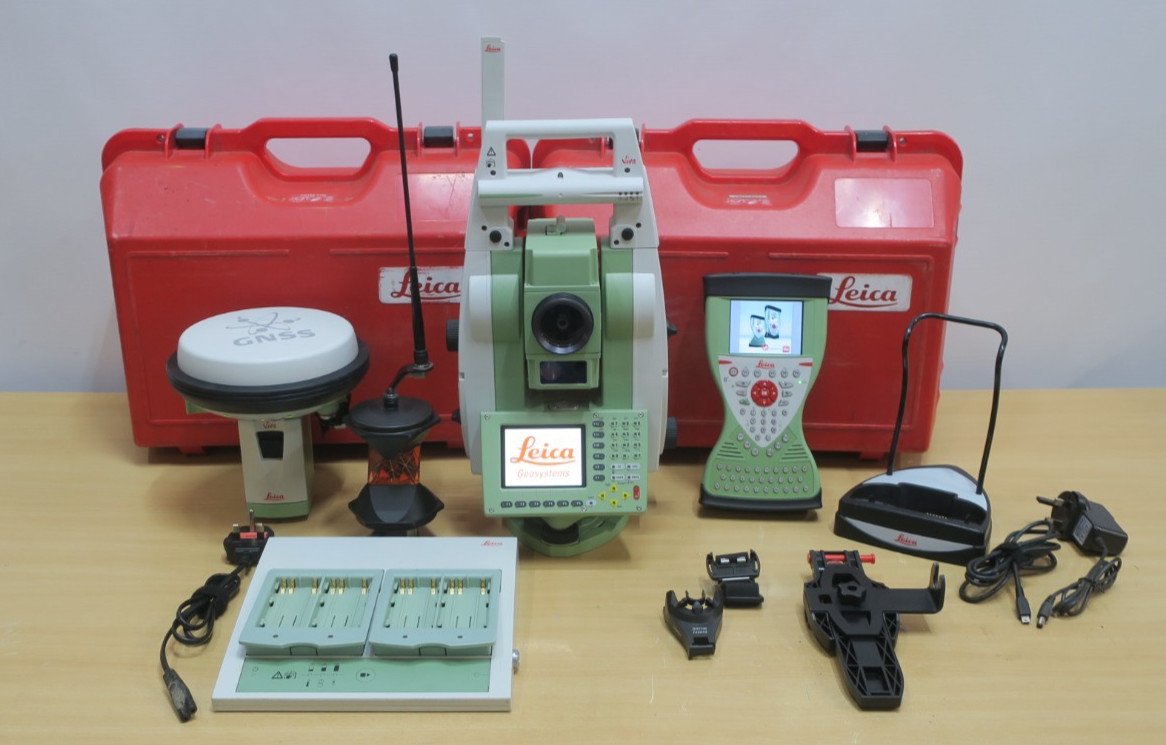

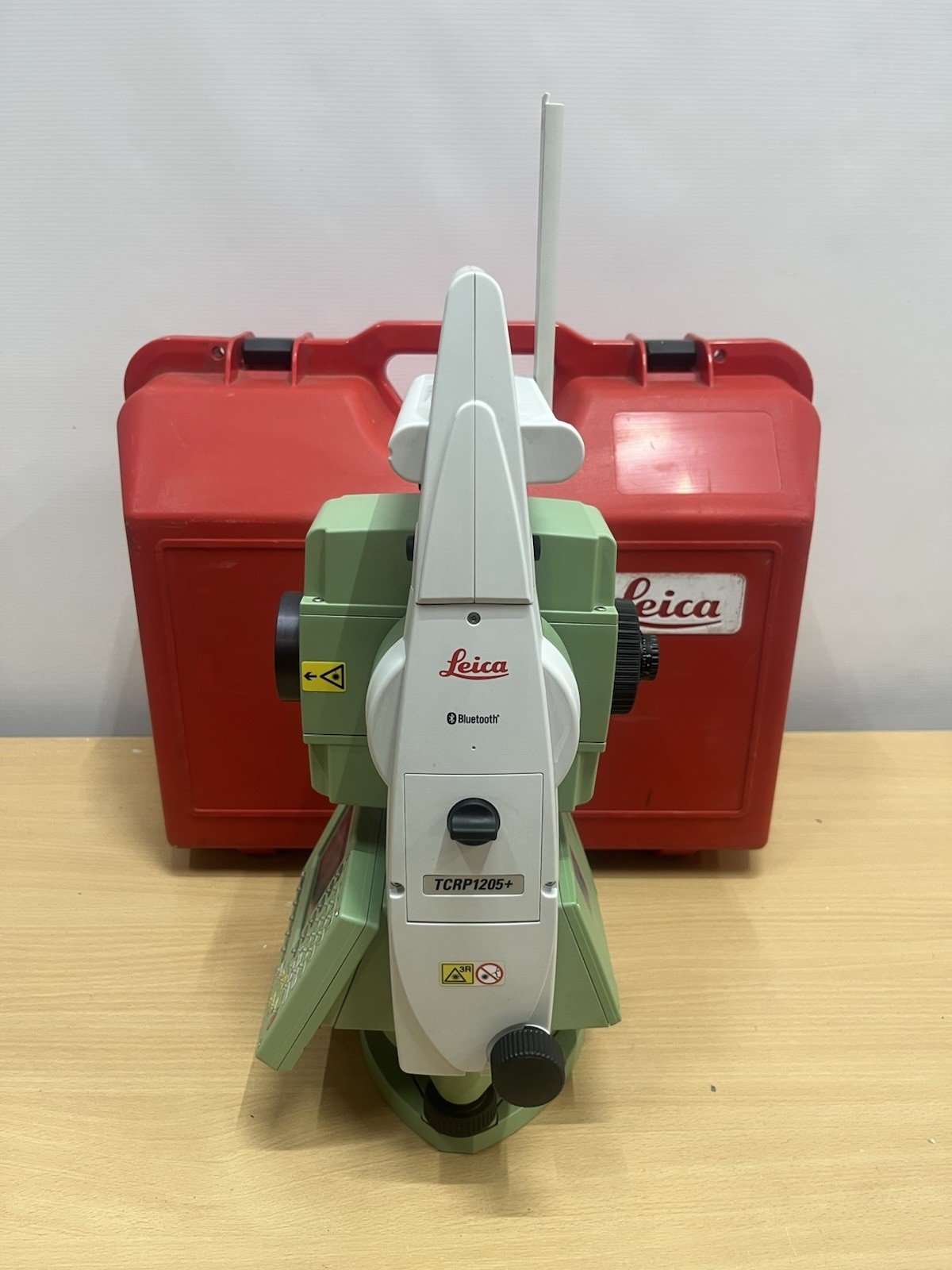

Leica TCRP1205+ R1000 Survey Station – High-Precision Robotic Total Station for Advanced Surveying Applications
The Leica TCRP1205+ R1000 Survey Station is a professional robotic total station designed for high-precision surveying, engineering measurement, construction layout, topographic mapping, and infrastructure positioning applications. Developed by Leica Geosystems, the TCRP1205+ R1000 combines advanced robotic automation, reflectorless EDM technology, intelligent prism tracking, and superior angular accuracy to support demanding field operations in construction and geospatial industries.
Built for surveyors and engineering professionals who require dependable measurement precision and efficient one-person operation, the Leica TCRP1205+ R1000 offers exceptional productivity, rugged durability, and seamless integration with modern surveying workflows.
Key Features of Leica TCRP1205+ R1000 Survey Station
High-Precision Angular Accuracy
The TCRP1205+ R1000 provides reliable and highly accurate angle measurements for precision-critical projects.
Accuracy Benefits
- Improved survey reliability
- Accurate layout positioning
- Reduced measurement deviation
- Consistent engineering-grade performance
Robotic One-Person Operation
The robotic system enables efficient surveying with minimal manpower requirements.
Robotic Advantages
- One-person field operation
- Automatic target tracking
- Motorized prism following
- Increased field productivity
PowerSearch Prism Acquisition Technology
Leica PowerSearch technology automatically locates prisms quickly in the field.
PowerSearch Features
- Fast prism detection
- Automatic target search
- Reduced setup time
- Improved operational efficiency
R1000 Reflectorless EDM Technology
The R1000 EDM system enables long-range reflectorless distance measurements with high accuracy.
EDM Benefits
- Long-range measurement capability
- Accurate inaccessible point measurement
- Fast distance acquisition
- Reliable field performance
Integrated SmartAntenna Support
Supports GNSS integration for hybrid positioning workflows.
GNSS Integration Benefits
- Combined TPS and GNSS workflows
- Faster project completion
- Enhanced positioning flexibility
- Improved site productivity
Rugged Field Durability
Engineered to withstand harsh environmental conditions.
Durability Features
- Weather-resistant housing
- Industrial-grade construction
- Dustproof protection
- Reliable outdoor operation
Applications of Leica TCRP1205+ R1000 Survey Station
Land Surveying and Mapping
Designed for high-accuracy geospatial data collection.
Survey Applications
- Boundary surveys
- Topographic mapping
- Control point establishment
- Geodetic surveys
Construction Layout
Supports precision construction positioning and alignment.
Construction Uses
- Building layout
- Structural positioning
- Anchor bolt layout
- MEP installation
Civil Engineering Projects
Provides precise infrastructure measurement and verification.
Engineering Applications
- Road alignment
- Bridge surveying
- Tunnel positioning
- Utility mapping
Monitoring and Deformation Analysis
Suitable for structural monitoring applications.
Monitoring Uses
- Structural displacement monitoring
- Bridge movement analysis
- Dam monitoring
- Industrial monitoring systems
Industrial Measurement
Supports industrial alignment and installation projects.
Industrial Applications
- Machine positioning
- Plant alignment
- Precision installation
- Manufacturing verification
General Specifications
| Specification | Details |
|---|---|
| Product Name | Leica TCRP1205+ R1000 Survey Station |
| Instrument Type | Robotic Total Station |
| Manufacturer | Leica Geosystems |
| Series | TPS1200+ Series |
| Operation Mode | Fully Robotic |
| Intended Applications | Surveying, Construction, Engineering |
Telescope Specifications
| Parameter | Specification |
|---|---|
| Telescope Magnification | 30x |
| Objective Aperture | 40 mm |
| Field of View | 1°30′ |
| Resolving Power | 3″ |
| Minimum Focus Distance | 1.7 m |
| Image | Erect |
Angle Measurement Specifications
| Parameter | Specification |
|---|---|
| Angular Accuracy | 5 Arc Seconds |
| Angle Reading System | Absolute Encoder |
| Minimum Display | 0.1″/1″ |
| Compensation Type | Dual-Axis Compensator |
| Compensation Range | ±4′ |
Distance Measurement Specifications
| Parameter | Prism Mode | Reflectorless Mode |
|---|---|---|
| Measurement Range | Up to 3,500 m | Up to 1,000 m |
| Accuracy | ±(1 mm + 1.5 ppm) | ±(2 mm + 2 ppm) |
| Measurement Time | Approx. 0.8 sec | Approx. 1.0 sec |
| EDM Technology | Laser EDM | Reflectorless R1000 |
Robotic Tracking Specifications
| Parameter | Specification |
|---|---|
| Prism Tracking | Automatic |
| PowerSearch Technology | Supported |
| Automatic Target Recognition | Supported |
| Motorized Rotation | Supported |
| Tracking Speed | High-Speed Servo Tracking |
Communication and Connectivity
| Parameter | Specification |
|---|---|
| Bluetooth | Integrated |
| RS-232 Port | Supported |
| USB Connectivity | Supported |
| Wireless Communication | Supported |
| External Controller Compatibility | Supported |
Data Storage and Software
| Parameter | Specification |
|---|---|
| Internal Memory | Large Capacity Storage |
| Data Formats | Standard Survey Formats |
| CAD Compatibility | Supported |
| Leica Software Integration | Supported |
| Data Export | USB / Wireless Transfer |
Display and Interface
| Parameter | Specification |
|---|---|
| Display Type | Color Graphic Display |
| Display Configuration | Dual Display |
| Keyboard | Alphanumeric Keyboard |
| Interface Navigation | Graphical Menu Interface |
| Illumination | Backlit Display and Keyboard |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP54 |
| Dust Resistance | Supported |
| Water Resistance | Weather Resistant |
Power Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Operating Time | Up to 8 Hours |
| Hot Swap Capability | Supported |
| Charging Time | Approx. 3–4 Hours |
Physical Specifications
| Parameter | Specification |
|---|---|
| Weight | Approx. 6.8 kg |
| Instrument Design | Compact Robotic System |
| Housing Material | Reinforced Industrial Housing |
| Mounting Type | Standard Tribrach Compatible |
