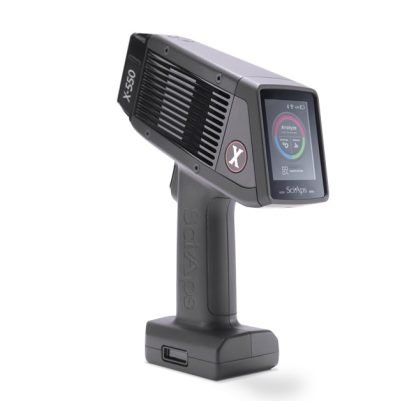

SciAps X550 Handheld XRF Analyzer: High-Speed Elemental Analysis in the Palm of Your Hand

Introduction to SciAps X550 Handheld XRF Analyzer

The SciAps Inc. X550 Handheld XRF Analyzer is a cutting-edge device designed for rapid, non-destructive elemental analysis in the field. Engineered with advanced X-ray fluorescence (XRF) technology, this portable analyzer delivers laboratory-grade results in seconds, making it an essential tool for professionals in mining, scrap metal recycling, environmental testing, and industrial quality control.

Key Features of SciAps X550

Ultra-Fast Analysis Performance

The X550 is known for its exceptional speed, delivering accurate elemental readings within seconds. This high-speed capability significantly improves productivity in demanding environments.

Advanced Detector Technology

Equipped with a high-performance silicon drift detector (SDD), the analyzer ensures precise detection of a wide range of elements, even at low concentrations.

Lightweight and Ergonomic Design

Designed for extended use, the X550 features a lightweight body and balanced grip, reducing operator fatigue during long inspection sessions.

Intuitive Android-Based Interface

The device runs on an Android operating system, providing a modern, user-friendly interface with easy navigation, data management, and wireless connectivity.

Rugged Construction for Field Use

Built to withstand harsh conditions, the X550 offers durability against dust, moisture, and physical impacts, ensuring reliable operation in challenging environments.

Technical Specifications

Detector and Measurement

• Silicon drift detector (SDD)
• Wide elemental range (Mg to U, depending on configuration)
• Rapid analysis time (1–5 seconds typical)

X-Ray Tube

• High-performance X-ray tube
• Optimized excitation for improved sensitivity
• Stable and consistent output

Data and Connectivity

• Android OS with touchscreen display
• Wi-Fi, Bluetooth, and USB connectivity
• Cloud data integration and reporting

Power System

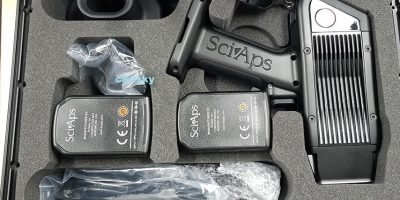

• Rechargeable lithium-ion batteries
• Extended battery life for full-day operation
• Hot-swappable battery capability

Applications of SciAps X550

Scrap Metal Recycling

Enables fast and accurate alloy identification, improving sorting efficiency and reducing material contamination.

Mining and Exploration

Provides real-time geochemical analysis, helping geologists make quick and informed decisions in the field.

Environmental Analysis

Used for detecting heavy metals in soil and other materials, supporting environmental monitoring and compliance.

Manufacturing and Quality Control

Ensures material composition meets required standards, reducing defects and improving product quality.

Benefits of Using SciAps X550

Increased Efficiency

High-speed analysis reduces downtime and allows more samples to be tested in less time.

Cost Savings

Minimizes reliance on laboratory testing, lowering operational costs and speeding up workflows.

Accurate and Reliable Results

Advanced detection technology ensures consistent and trustworthy data across various applications.

Versatile Performance

Suitable for multiple industries, making it a flexible and valuable analytical tool.

Why Choose SciAps X550 Handheld XRF Analyzer

The X550 stands out due to its combination of speed, accuracy, and modern technology. Developed by SciAps Inc., it delivers dependable performance in both laboratory and field environments, making it a top choice for professionals who require precision and mobility.

Specifications:

Weight : 2.8 lbs. with battery

Dimensions : 7.25” x 10.5” x 4.5”

Excitation Source : 40 kV, 200 uA Rh anode and 10kV, 500 uA for alloy testing,
50 kV, 200 uA Au anode for most other apps

Detector : 20 mm2 silicon drift detector (active area), 140 eV resolution
FWHM at 5.95 Mn K-alpha line

Available Apps : Alloy, Geochem (Mining), Empirical, Environmental apps. New apps are added regularly, please check with company or website.

X-ray Filtering : 4 position filter wheel for beam optimization

Environmental Temperature Range : 10F to 130F at 25% duty cycle

Analytical Range : 32 elements standard, specific elements vary by app. Additional elements may be added upon user request. Precious metals app is 22 elements standard.

Processing Electronics and Host Processing : 1.2GHz ARM Cortex A53 64/32-bit, RAM 2GB LP-DDR3, Storage: 16 GB eMMC (storage)

Pulse Processor : 12 bit with digitization rate of 80 MSPS 8K channel MCA USB 2.0 for high-speed data transfer to host processor. Digital filtering implemented in FPGA for high throughput pulse processing 20 nS – 24 uS peaking time.

Power : On-board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power, hot-swap capability (60 s max swap time).
