Easy-Laser XT770 + GEO Laser Alignment System: Advanced Shaft Alignment and Geometric Measurement Solution

Introduction to Easy-Laser XT770 + GEO

The Easy-Laser XT770 + GEO Laser Alignment System is a comprehensive solution designed for precise shaft alignment and advanced geometric measurements. Combining alignment capabilities with dedicated laser transmitters, this system enables professionals to install, monitor, and maintain machinery with exceptional accuracy and efficiency.

What is the XT770 + GEO System?

All-in-One Alignment and Geometry Tool

The XT770 + GEO extends the capabilities of standard alignment systems by integrating geometric measurement functions such as flatness, straightness, and twist analysis.

Designed for Industrial Reliability

Built for demanding environments, the system ensures consistent performance for maintenance teams working across industries such as manufacturing, power generation, and heavy equipment.

Key Functions of XT770 + GEO

Shaft Alignment

• Align horizontal and vertical/flange-mounted machines
• Align multi-machine trains with unlimited configurations
• Multiple measurement methods including continuous sweep and multipoint

Machine Condition Checks

• Soft foot detection and correction
• Measurement of machine movement over time
• Bearing clearance analysis

Geometric Measurements

• Straightness, flatness, and twist of foundations
• Surface flatness of machined parts
• Parallelism and squareness (with XT22)

Advanced Measurement Technology

2-Axis PSD Sensors

The system uses dual-axis position-sensitive detectors (PSDs) that allow simultaneous vertical and horizontal alignment adjustments, improving speed and accuracy.

Flexible Measurement Methods

Users can choose from five measurement techniques, ensuring optimal results based on machine configuration and working conditions.

Laser Transmitters for GEO Measurements

XT20 Laser Transmitter

• Ideal for flatness and straightness measurements
• 360° laser sweep with up to 20 m radius
• Fine adjustment for precise beam targeting
• Electronic precision vials for accurate leveling

XT22 Laser Transmitter

• Supports flatness, straightness, squareness, level, and parallelism
• 360° laser sweep up to 40 m radius
• Perpendicular beam capability with high precision
• Fiber-coupled laser for superior beam quality

Measuring Units XT70-M / XT70-S

High-Precision Sensors

• 2-axis TruePSD technology with unlimited resolution
• Accuracy up to ±1 µm ±1%
• Measurement range up to 20 m

Durable Construction

• Rigid aluminum housing
• IP66/67 protection against dust and water
• Built-in wireless communication
• OLED display for angle positioning

Display Unit XT12

Rugged Industrial Tablet

• 8-inch glove-enabled touchscreen
• Shockproof and waterproof (IP66/67)
• Built-in 13 MP camera for documentation
• Optional IR camera for thermal imaging

User-Friendly Operation

• Intuitive interface with step-by-step guidance
• Up to 16 hours operating time
• Wireless connectivity and data management

Key Features of Easy-Laser XT770 + GEO

Wireless and Portable Design

Integrated wireless technology eliminates cable constraints, improving mobility and ease of use.

High Accuracy and Reliability

TruePSD technology and dual laser systems ensure precise measurement results across all applications.

Long Operating Time

Heavy-duty rechargeable batteries provide extended operation for full-day use in the field.

Versatile Mounting Options

Flexible mounting solutions allow use in various setups, including tripods, magnetic bases, and custom configurations.

Applications of XT770 + GEO

Industrial Maintenance

Ensures proper alignment of motors, pumps, and rotating equipment, reducing wear and downtime.

Machine Installation

Supports accurate setup of machinery with geometric verification of foundations and surfaces.

Power Generation

Improves reliability of turbines and generators through precise alignment and monitoring.

Manufacturing and Engineering

Used for quality control, surface measurement, and structural alignment tasks.

Benefits of Using Easy-Laser XT770 + GEO

Improved Machine Performance

Accurate alignment reduces vibration, energy loss, and mechanical stress.

Reduced Downtime

Fast measurement and correction minimize production interruptions.

Enhanced Measurement Capability

Combines shaft alignment with advanced geometric analysis in one system.

Cost Efficiency

Prevents costly repairs and extends equipment lifespan through proactive maintenance.

Technical Specifications Overview

Display Unit XT12

• 8” multi-touch display
• Wireless and WiFi connectivity
• Operating time up to 16 hours
• Built-in camera and optional IR camera

Measuring Units XT70

• Resolution: 0.001 mm
• Accuracy: ±1 µm ±1%
• Operating time up to 24 hours
• IP66/67 protection

Laser System

• Diode laser (630–680 nm)
• Safety class 2
• Measurement range up to 20–40 m depending on transmitter

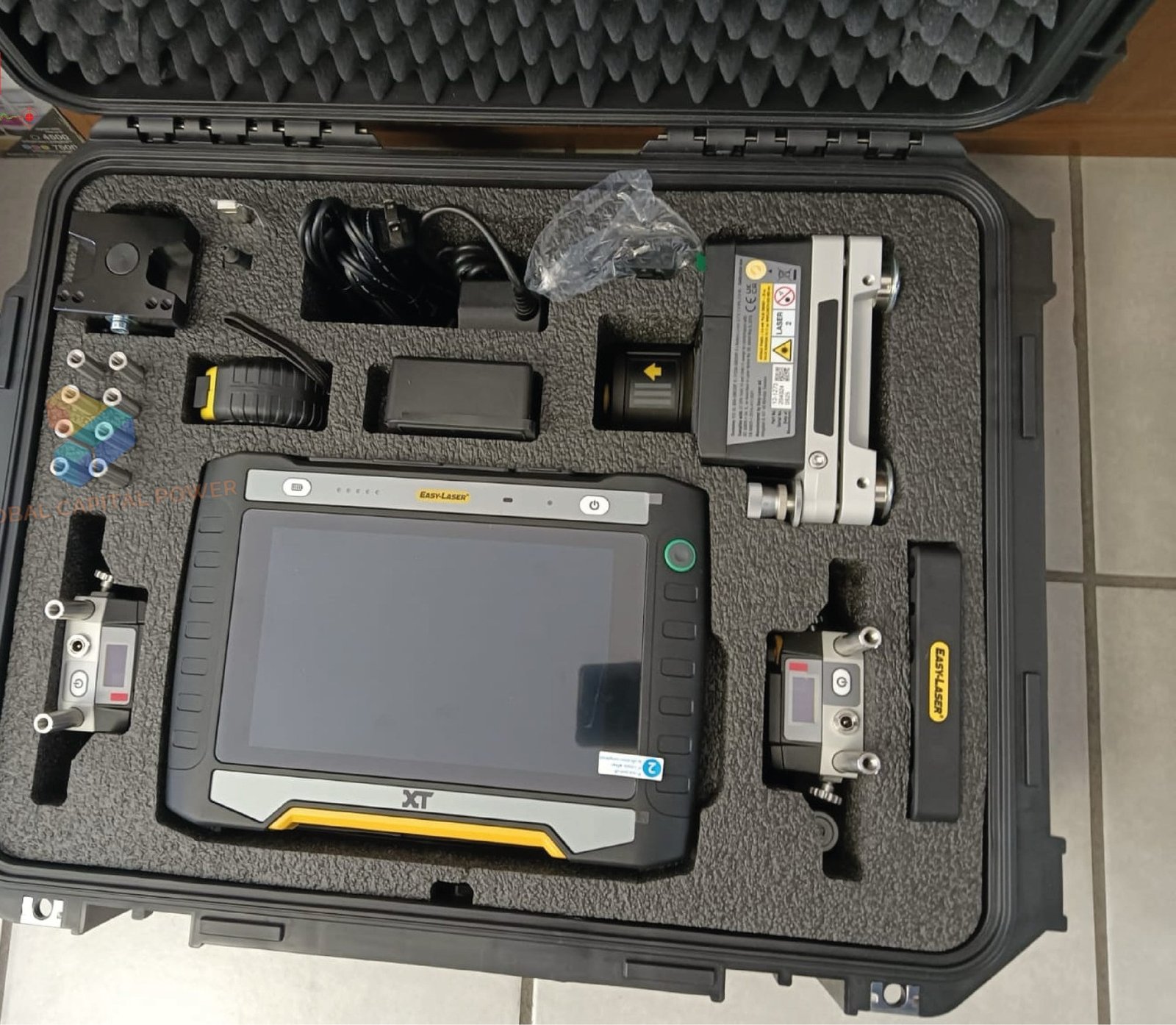

Package Includes

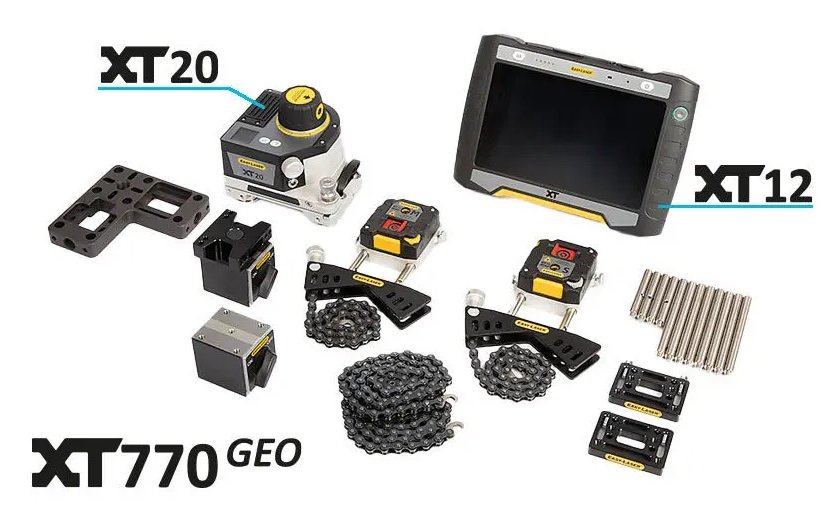

• XT12 display unit
• Measuring units XT70-M and XT70-S
• Laser transmitter XT20 or XT22
• Mounting accessories and brackets
• Wireless communication components
• Charging equipment and cables

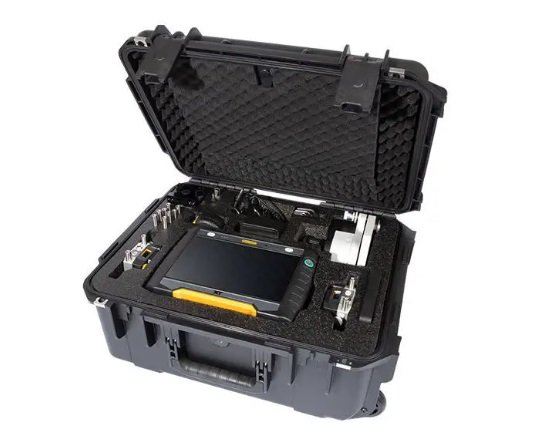

• Carrying case with wheels
• Documentation and software resources

Why Choose Easy-Laser XT770 + GEO

The XT770 + GEO stands out as a complete alignment and measurement solution. Backed by the expertise of Easy-Laser, it offers unmatched versatility, precision, and durability for professionals who require reliable performance in complex industrial environments.

Warranty Information
2 Years
