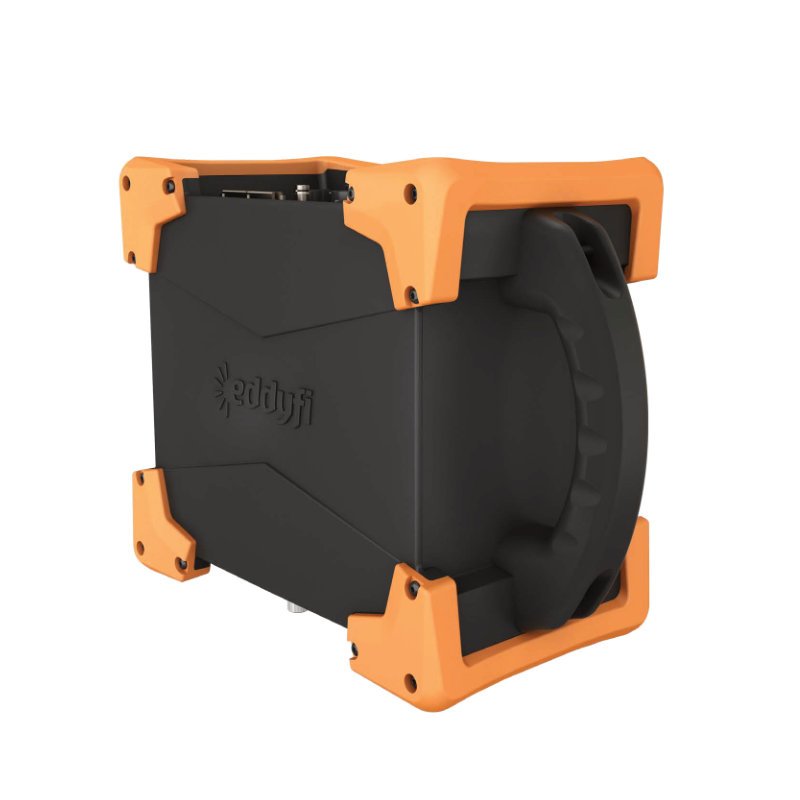

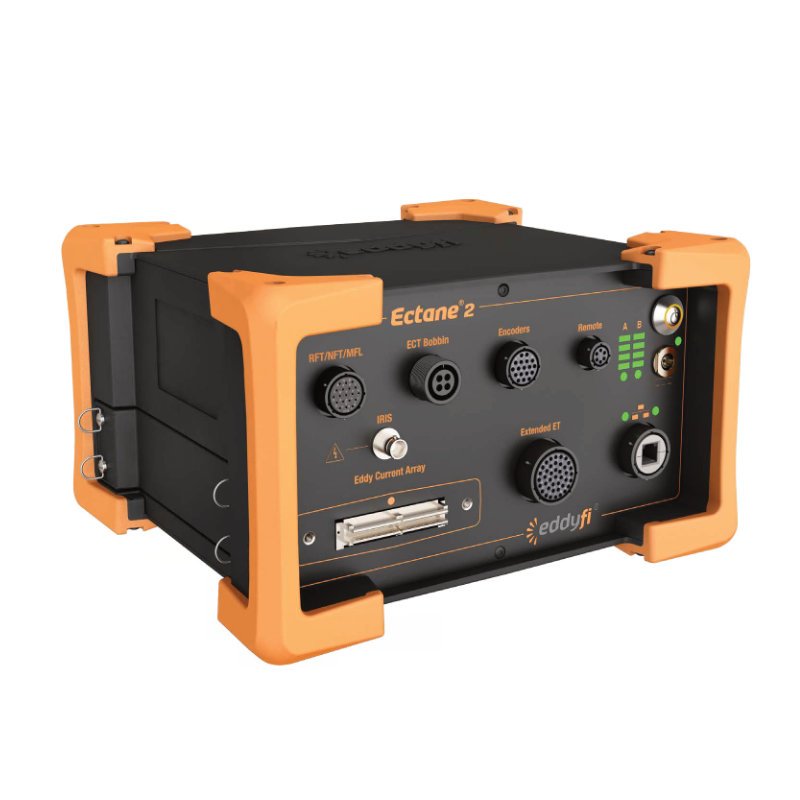

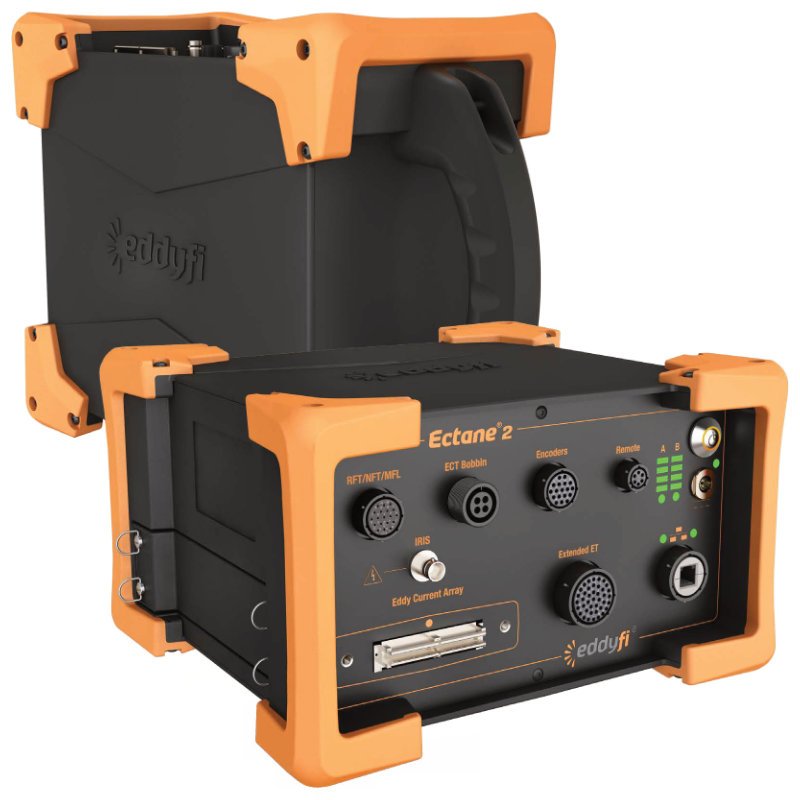

Eddyfi Ectane 2 Eddy Current Flaw Detector

Introduction to Advanced Non-Destructive Testing

The Eddyfi Technologies Ectane 2 Eddy Current Flaw Detector is a high-performance, multi-technology instrument engineered for comprehensive non-destructive testing in demanding industrial environments. Designed for tubing and surface inspections, this versatile system allows inspectors to perform multiple testing methods using a single, portable device, significantly improving efficiency and reducing equipment requirements in the field.

Multi-Technology Capabilities in One Platform

Integrated Inspection Techniques

The Ectane 2 combines a wide range of inspection technologies into a single unit, enabling thorough and flexible testing workflows. These include eddy current testing, eddy current array, tangential eddy current array, remote-field testing, near-field testing, magnetic flux leakage, and IRIS ultrasonic testing.

Benefits of Multi-Method Inspection

By integrating multiple techniques, the device allows inspectors to detect different types of defects such as corrosion, cracks, and wall thinning without switching equipment. This leads to faster inspections and more reliable results across various applications.

Performance and Processing Power

High-Speed Data Processing

The upgraded CPU board delivers ultrafast probe nulling and real-time signal processing. This ensures accurate results regardless of the selected inspection technology.

Extended Frequency Range

With a maximum eddy current testing frequency of up to 10 MHz, the Ectane 2 provides enhanced sensitivity and flexibility for inspecting a wide variety of materials and geometries.

Advanced Probe Control

The system supports motorized rotating probes and programmable current control, enabling detection of both longitudinal and circumferential defects with high precision.

Portability and Field Efficiency

Lightweight and Battery-Powered Design

The Ectane 2 is designed for field use with a compact structure and battery operation that provides up to 8 hours of continuous use. This makes it ideal for remote or challenging inspection environments.

Seamless Network Connectivity

The device connects easily to networks without requiring complex configuration tools, simplifying setup and reducing downtime during inspections.

Key Features Enhancing Inspection Accuracy

Thru-Coat Measurement Technology

The patented Thru-Coat technology allows users to measure both metal thickness and coating thickness using a single back wall echo, improving efficiency and accuracy.

Temperature Compensation

The system automatically adjusts for changes in material temperature, ensuring consistent and reliable thickness measurements.

Oxide and Scale Measurement

An optional feature enables the measurement of oxide or scale buildup on steel surfaces, providing additional insight into material condition.

Enhanced Display and Data Logging

A high-contrast A-scan display improves visibility, while the advanced datalogger supports extended file naming and detailed data storage for comprehensive analysis.

Versatile Applications Across Industries

Heat Exchangers and Condensers

The Ectane 2 is widely used for inspecting heat exchangers, condensers, and feedwater heaters in both ferrous and non-ferrous materials.

Power Generation and HVAC Systems

It supports inspection of boilers, chillers, and air conditioning systems, ensuring operational safety and efficiency.

Nuclear and Industrial Components

The device is suitable for surface inspections of critical components in nuclear facilities and other high-risk industrial environments.

Quality Control and Manufacturing

Manufacturers use the system for in-line inspections and quality assurance, helping maintain high production standards.

Technical Specifications

General Overview

The Ectane 2 measures approximately 279.6 × 254.0 × 158.8 mm and weighs around 6.8 kg with batteries. Its sealed, fanless design ensures durability and reliable operation in harsh conditions.

Power and Battery Performance

The unit operates for up to 8 hours on high-capacity batteries and includes a universal power adapter for flexible charging options.

Eddy Current Testing Capabilities

The system supports up to 8 probe inputs with frequencies ranging from 5 Hz to 10 MHz, delivering high-performance eddy current inspection.

Eddy Current Array and Additional Modes

It offers up to 256 channels for eddy current array inspections and supports multiple probe configurations for advanced testing techniques.

Ultrasonic IRIS Capabilities

The IRIS module provides high-resolution wall thickness measurements with real-time A, B, and C-scan visualization, supporting precise internal inspections.

Compliance and Standards

The Ectane 2 complies with major international standards including ASME, CE, RoHS, and other regulatory requirements, ensuring reliability and safety.

Included Package Components

Standard Equipment

The package includes the Ectane 2 unit, high-capacity batteries, probes, power adapter, cables, and a transport case, providing everything needed for immediate deployment.

Documentation and Support

Users receive a calibration certificate, warranty card, and user guide to ensure proper operation and long-term reliability.

Advantages of Using Ectane 2

Reduced Equipment Needs

Combining multiple inspection technologies into one device eliminates the need for several instruments, simplifying logistics and reducing costs.

Improved Inspection Speed

Real-time processing and multi-method capabilities allow faster inspections without compromising accuracy.

Enhanced Reliability

Advanced features and robust construction ensure consistent performance in demanding industrial environments.

Warranty Information
2 Years
