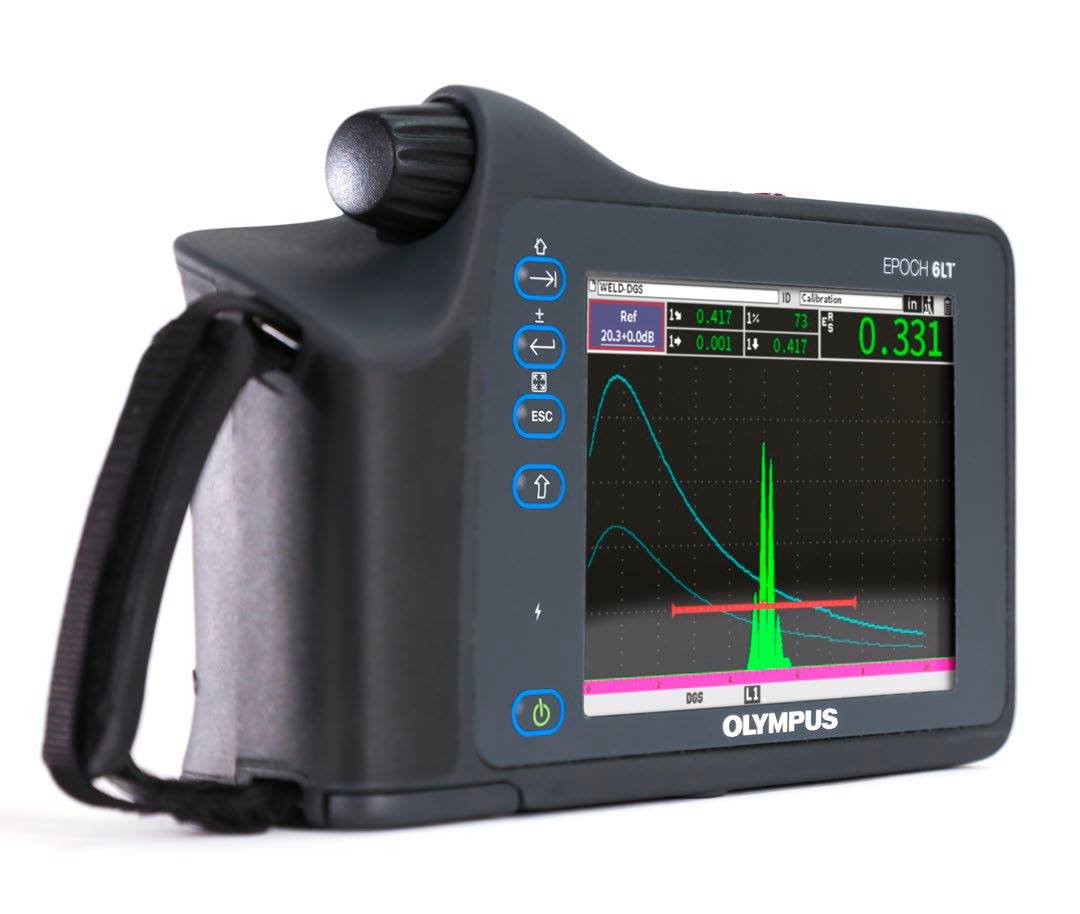

Olympus EPOCH 6LT Ultrasonic Flaw Detector – Compact Power for Advanced NDT Inspections

The Olympus Corporation EPOCH 6LT Ultrasonic Flaw Detector is a compact yet powerful non-destructive testing (NDT) device designed for professionals who demand precision without sacrificing portability. Built for rope access technicians and field inspectors, this instrument delivers advanced ultrasonic capabilities in a lightweight, ergonomic form.

Portable Design Without Compromise

The EPOCH 6LT is engineered for inspectors working in challenging environments where mobility is essential. Despite its compact size, it retains the full functionality expected from a high-performance flaw detector.

Lightweight and Comfortable

Weighing only 1.95 lb (890 g), the device features a grip-oriented design that ensures comfort during extended inspections, even when operated with one hand.

Built for Tough Conditions

Designed to meet IP65 and IP67 standards, the unit is resistant to dust, water, and harsh industrial environments. It is also drop-tested for added durability.

Clear Visibility in Any Environment

A bright, high-resolution display ensures that A-scan readings remain visible in both bright sunlight and low-light conditions.

Intuitive Operation for Efficient Workflow

Ease of use is a core advantage of the EPOCH 6LT. Its interface is designed to minimize complexity and maximize productivity.

Simple Navigation

A rotary knob combined with clearly defined buttons enables easy operation—even when wearing gloves.

Icon-Based Interface

The two-screen layout with intuitive icons allows quick access to key features, reducing time spent navigating menus.

Optimized for One-Handed Use

The device is specifically designed for one-handed operation, freeing the other hand for probe handling or maintaining balance in rope access scenarios.

Advanced Ultrasonic Flaw Detection Capabilities

Built on the same digital platform as the well-known EPOCH 650, this device offers powerful inspection performance across a wide range of applications.

High-Performance Pulser/Receiver

• Tunable square wave pulser (PerfectSquare™ technology)
• Adjustable pulse repetition frequency (10 Hz to 2000 Hz)
• Voltage settings from 100 V to 400 V
• High dynamic range receiver for accurate signal interpretation

Precision Measurement Features

• Amplitude resolution up to ±0.25%
• Five customizable digital measurements
• High signal-to-noise ratio for improved defect detection

Standard and Optional Software Features

The EPOCH 6LT includes advanced software tools to support accurate and efficient inspections.

Standard Features

• DAC/TCG for dynamic signal comparison
• DGS/AVG for defect sizing analysis
• AWS D1.1 and D1.5 weld rating calculator

Optional Enhancements

• Corrosion module with automatic probe recognition and gain control
• Back wall echo attenuator for improved signal clarity
• Advanced thickness measurement capabilities

Rope Access and High-Portability Applications

The system is specifically designed to support inspections in difficult-to-reach areas.

Hands-Free Operation

With a dedicated rope access accessory kit, users can attach the device to a harness or leg strap, enabling safe and efficient hands-free use.

Adjustable Display Orientation

The screen can rotate into portrait mode, ensuring clear visibility when mounted on the body.

Improved Safety

One-handed control allows inspectors to maintain stability while performing measurements in elevated or hazardous environments.

Industry Applications

The EPOCH 6LT is suitable for a wide range of industrial inspection scenarios:

Offshore Platforms

Ideal for detecting corrosion and structural defects in oil and gas installations.

Wind Turbines

Supports inspection of towers and composite blades with high sensitivity and accuracy.

Bridges and Structural Steel

Ensures compliance with industry standards through advanced weld inspection features.

Pipelines and Rail Systems

Lightweight design makes it ideal for inspectors who travel frequently and require portable equipment.

Aircraft Maintenance

Provides the precision needed to inspect composite materials and critical aircraft components.

Data Management and Connectivity

Efficient data handling is essential for modern inspection workflows.

Flexible Data Storage

• Stores up to 100,000 IDs onboard
• Supports BMP, CSV, and PDF formats

Connectivity Options

• USB data transfer
• Optional Wi-Fi for wireless communication

Cloud Integration

The device can connect to the Olympus Scientific Cloud, enabling:

• Remote data access
• File backup and archiving
• Firmware updates

Key Specifications Overview

General Specifications

• Display: VGA (640 × 480) transflective color LCD
• Battery Life: Up to 6 hours (Li-ion rechargeable)
• Dimensions: 209 × 128 × 36 mm
• Weight: 890 g

Environmental Ratings

• IP65/IP67 protection
• Operating temperature: -10°C to 50°C
• Shock and vibration tested (MIL-STD compliant)

Measurement Capabilities

• Range: 4.31 mm to 6,700 mm
• Velocity: 635 m/s to 15,240 m/s
• Two independent measurement gates

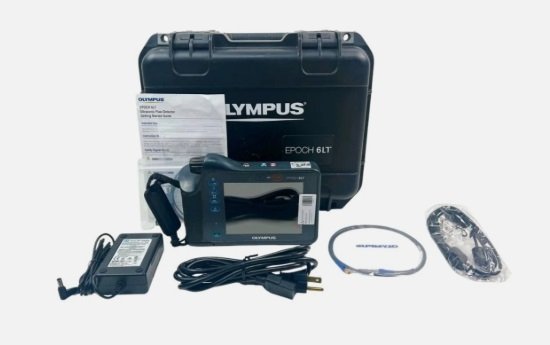

Accessories and Package Contents

The EPOCH 6LT comes as a complete inspection solution, including:

• Main unit
• Lithium-ion battery
• AC charger and external charging base
• Rope access accessory kit
• USB cable and flash drive with user manual
• Carry case and wrist strap
• Calibration certificate and warranty card

Why Choose the Olympus EPOCH 6LT?

The EPOCH 6LT stands out as a reliable and efficient ultrasonic flaw detector for professionals who need portability without sacrificing performance. Its combination of rugged construction, advanced features, and intuitive operation makes it an excellent choice for demanding inspection environments.

Warranty Information
2 Years
