Leica TS12 R400 Total Station: Precision and Reliability for Professional Surveying

Introduction to Leica TS12 R400

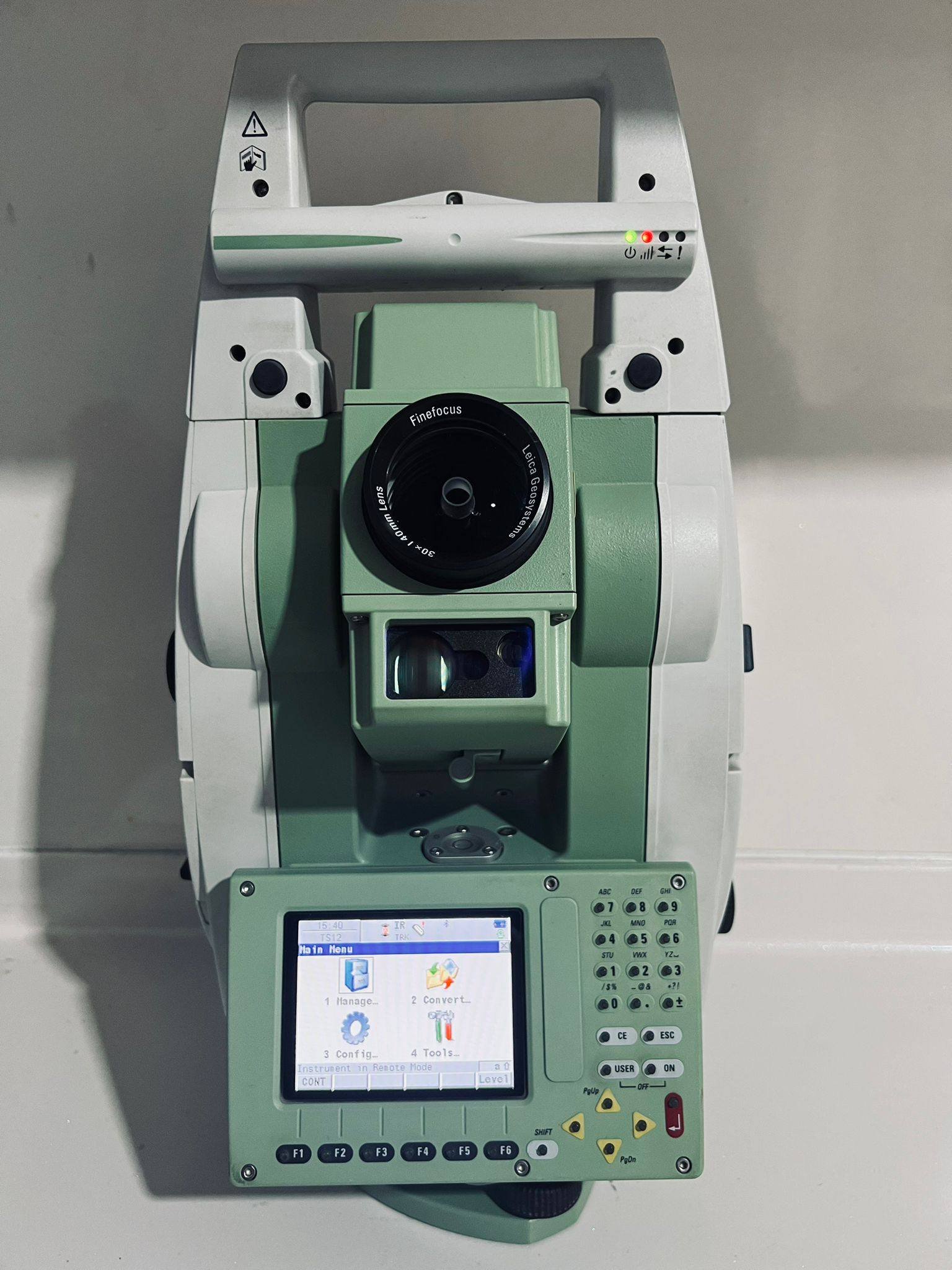

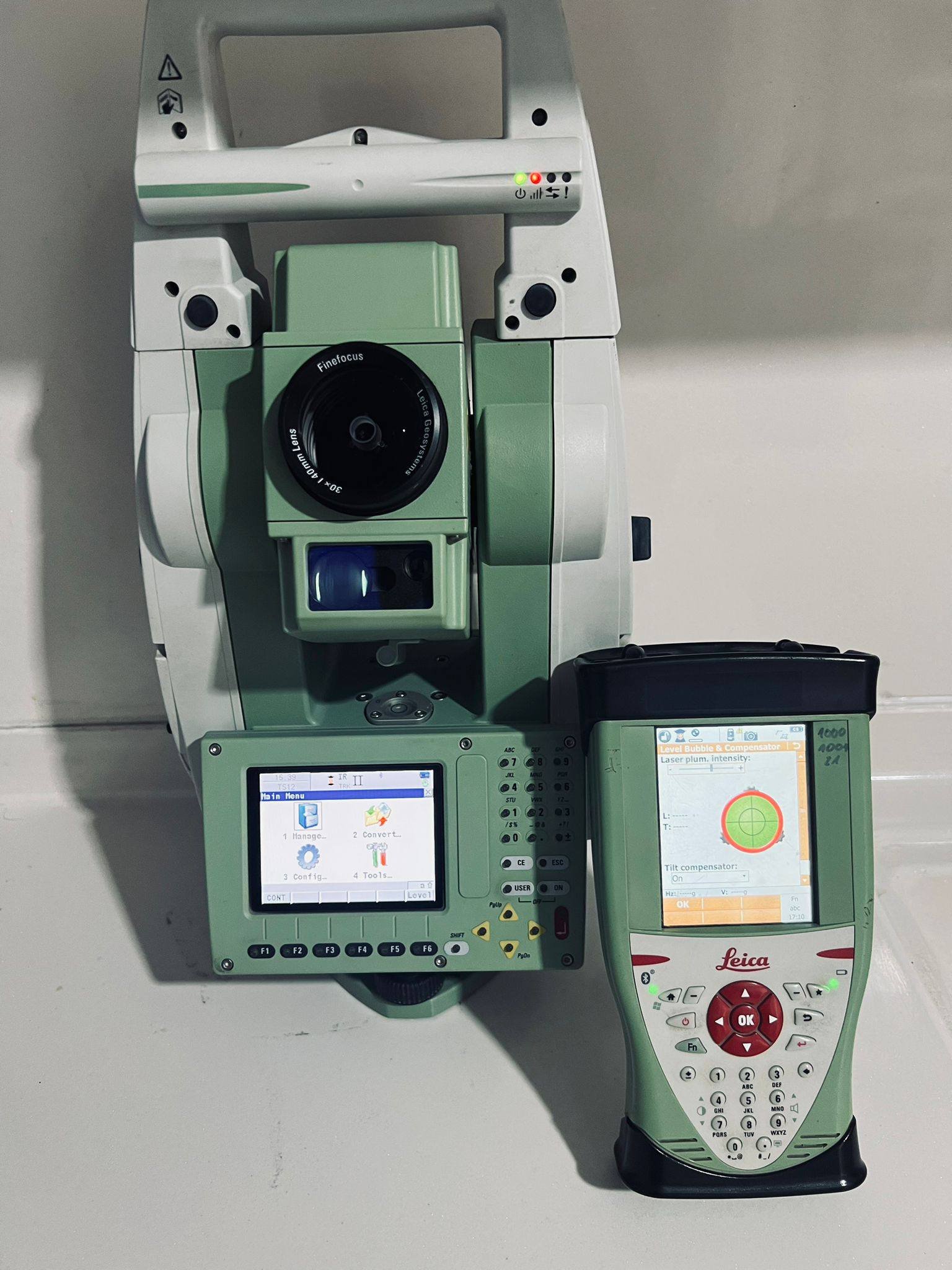

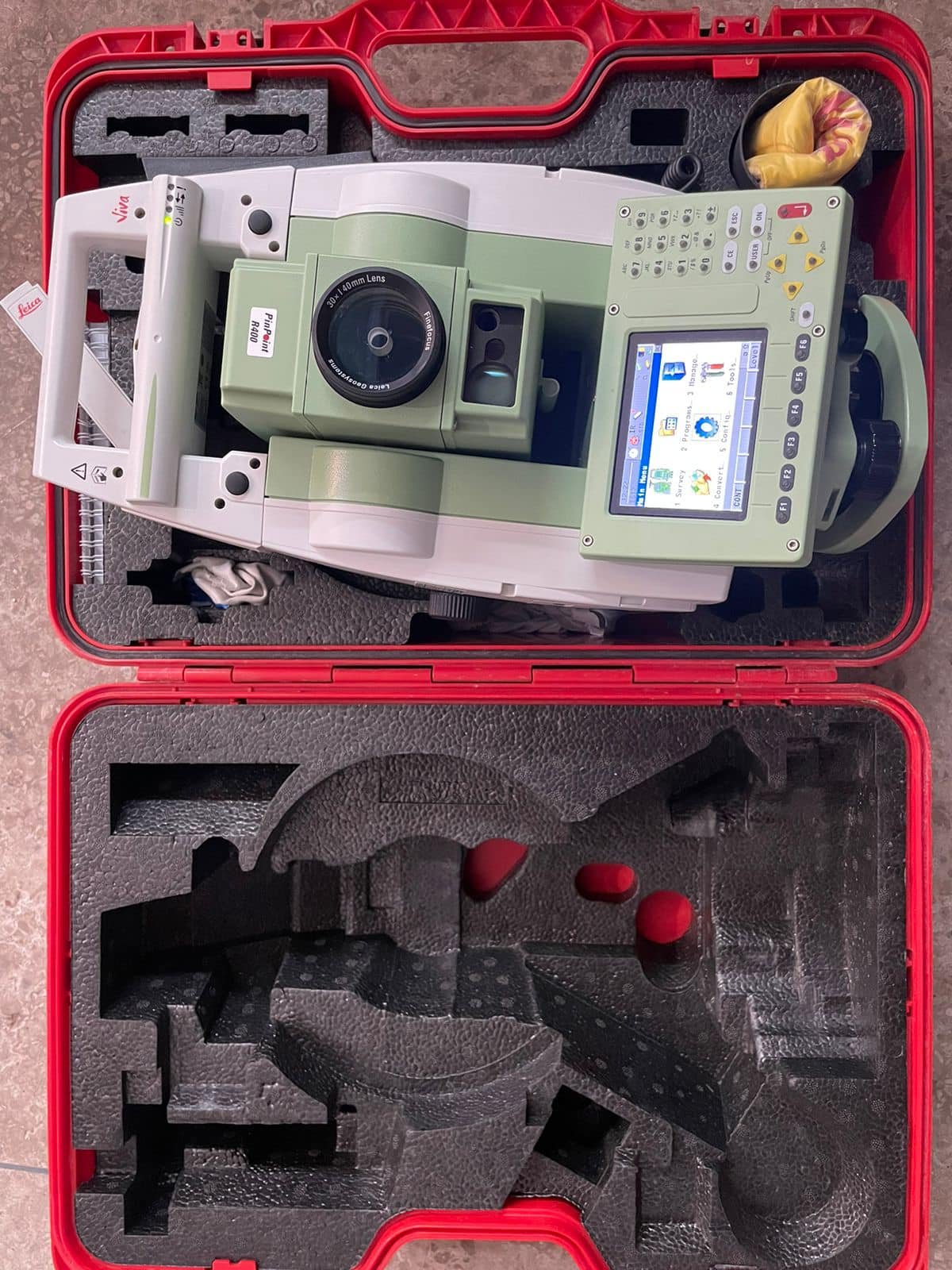

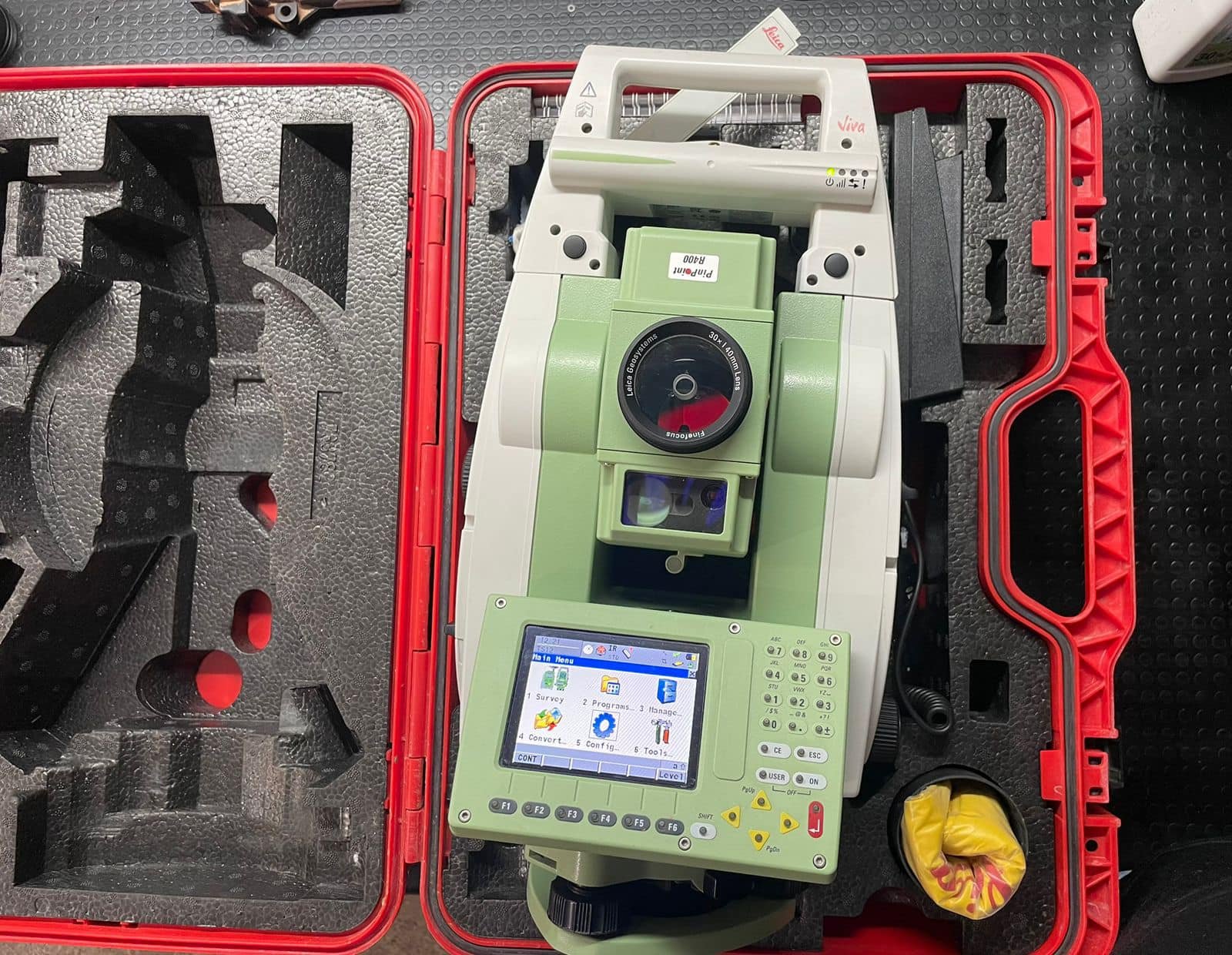

The Leica TS12 R400 Total Station is a dependable and high-accuracy surveying instrument developed by Leica Geosystems. Designed for professionals who require precise measurements and efficient workflows, this total station integrates advanced EDM technology, robust construction, and intuitive operation for everyday field use.

Key Features of Leica TS12 R400

High-Accuracy Measurement Options

The TS12 is available in multiple angular accuracy configurations (1″, 2″, 3″, and 5″), allowing users to select the appropriate precision level for their projects.

PinPoint R400 EDM Technology

Equipped with Leica’s PinPoint EDM, the TS12 R400 offers accurate reflectorless distance measurements up to 400 meters, ensuring flexibility in various field conditions.

Intuitive Onboard Software

The integrated Leica FlexField software provides a user-friendly interface, simplifying data collection, stakeout, and survey workflows.

Durable and Field-Ready Design

Built for challenging environments, the TS12 features a rugged housing that ensures reliable performance under harsh weather conditions.

Benefits for Surveying Professionals

Reliable Measurement Accuracy

Ensures consistent results for both short- and long-range measurements.

Efficient Workflow

Quick setup and easy operation reduce field time and increase productivity.

Versatile Usage

Suitable for a wide range of applications, from basic surveys to construction layout.

Applications of Leica TS12 R400

Land Surveying

Accurate boundary surveys, topographic mapping, and cadastral work.

Construction Layout

Precise positioning for building and infrastructure projects.

Engineering Projects

Supports alignment, measurement, and as-built verification.

Utility Mapping

Efficient data collection for underground and above-ground utilities.

 Specifications of Leica TS12 R400 Total Station;

General Information

• Manufacturer: Leica Geosystems
• Product Type: Manual Total Station
• Model: TS12 R400
• Angular Accuracy Options: 1″ / 2″ / 3″ / 5″

Angular Measurement

• Measurement Method: Absolute, continuous
• Accuracy:
  • 1″ / 2″ / 3″ / 5″ (model dependent)
• Display Resolution: 0.1″
• Compensator: Dual-axis
• Compensator Range: ±4′
• Compensator Accuracy: ±1.5″

Distance Measurement (EDM)

Prism Measurement

• Range: Up to 10,000 m
• Accuracy: ±(1 mm + 1.5 ppm)
• Measurement Time: ~1.5 sec

Reflectorless Measurement (R400)

• Range: Up to 400 m
• Accuracy: ±(2 mm + 2 ppm)
• Measurement Time: ~2–3 sec

Reflective Tape

• Range: Up to 250 m
• Accuracy: ±(2 mm + 2 ppm)

Telescope & Optics

• Magnification: 30×
• Field of View: 1°30′ (2.7 m at 100 m)
• Minimum Focus Distance: 1.7 m
• Reticle: Illuminated

Laser & EDM Characteristics

• Laser Type: Coaxial visible red laser
• Technology: PinPoint EDM
• Laser Spot Size: Optimized for precision targeting

Display & User Interface

• Display:
  • High-resolution graphical display
  • Optional dual display
• Keyboard:
  • Alphanumeric keypad
• Interface Software: Leica FlexField

Data & Connectivity

• Internal Memory: Approx. 50,000 points
• External Storage: USB / SD card
• Interfaces:
  • USB
  • RS232
  • Bluetooth (optional)

Software Compatibility

• Leica FlexField (onboard)
• Leica Geo Office / Leica Infinity
• CAD/GIS data export supported

Power Supply

• Battery Type: Lithium-Ion
• Operating Time: Up to 20 hours
• Charging: External charger

Environmental & Durability

• Protection Rating: IP55 / IP65 (model dependent)
• Operating Temperature: -20°C to +50°C
• Humidity: Up to 95% non-condensing

Physical Specifications

• Weight: Approx. 5.1 kg
• Build: Rugged industrial design

Key Technologies

• PinPoint EDM (R400 reflectorless)
• Dual-axis compensator
• Leica FlexField software
• Reflectorless measurement capability
• Reliable optical system

Why Choose Leica TS12 R400?

Proven Leica Performance

Built with precision engineering and trusted worldwide for accuracy.

Cost-Effective Surveying Solution

Offers advanced features at a competitive level for everyday use.

Easy Operation

User-friendly interface reduces training time and improves efficiency.

Warranty Information
2 Years
