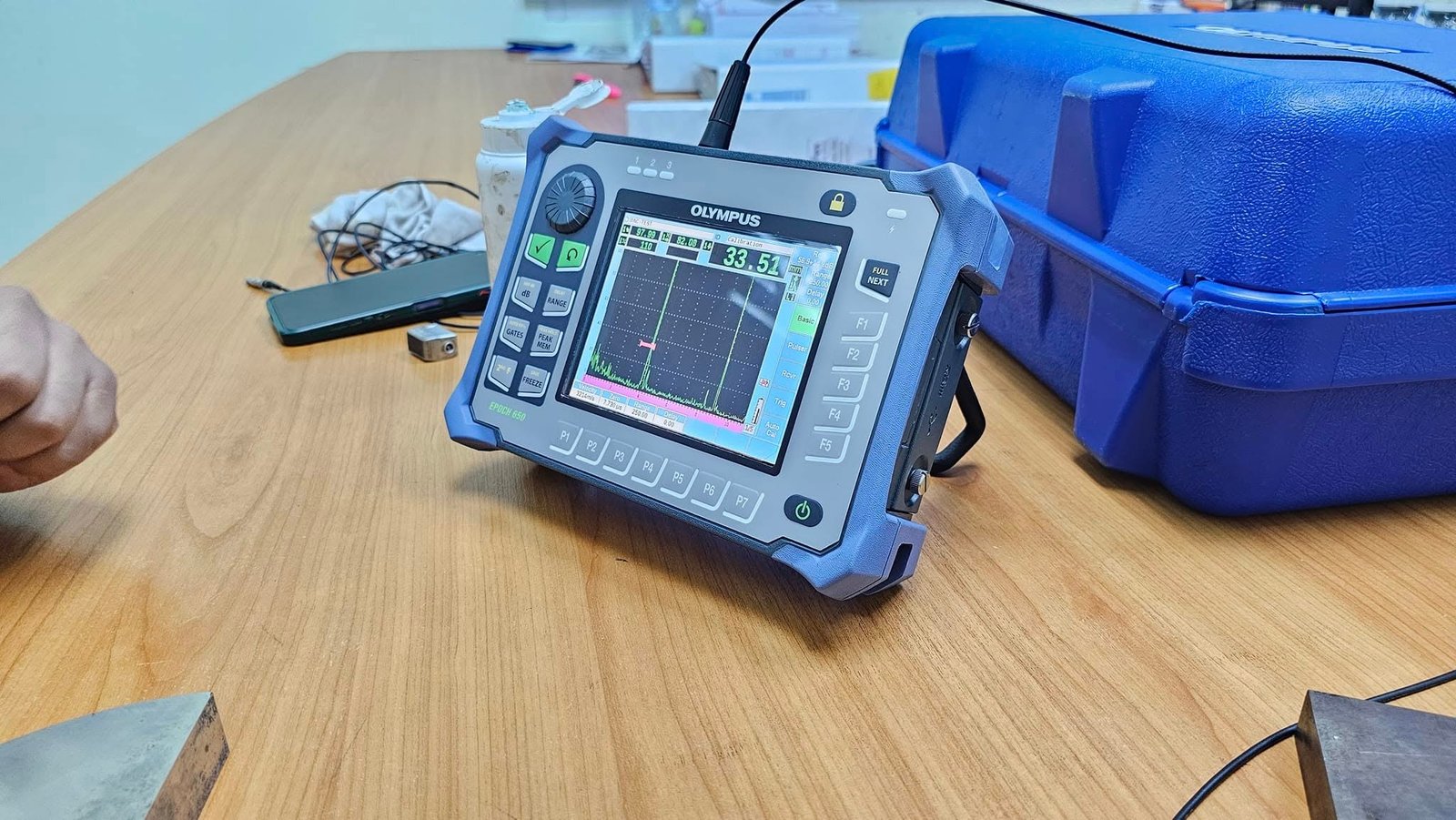

Olympus EPOCH 650 Ultrasonic Flaw Detector: Advanced NDT Inspection Technology

Introduction to the Olympus EPOCH 650

The Olympus EPOCH 650 Ultrasonic Flaw Detector is a high-performance non-destructive testing (NDT) instrument designed for accurate flaw detection in industrial materials. Developed by Olympus Corporation, this device combines portability, durability, and advanced ultrasonic capabilities to meet the demanding needs of inspection professionals across industries such as oil & gas, aerospace, manufacturing, and power generation.

Key Features of Olympus EPOCH 650

High-Resolution Ultrasonic Testing

The EPOCH 650 delivers precise ultrasonic measurements with excellent signal clarity, enabling accurate detection of internal defects such as cracks, voids, and inclusions.

Portable and Rugged Design

Engineered for field use, the device features a lightweight yet durable housing that withstands harsh environments, making it ideal for on-site inspections.

Advanced Measurement Modes

Supports multiple inspection techniques, including:

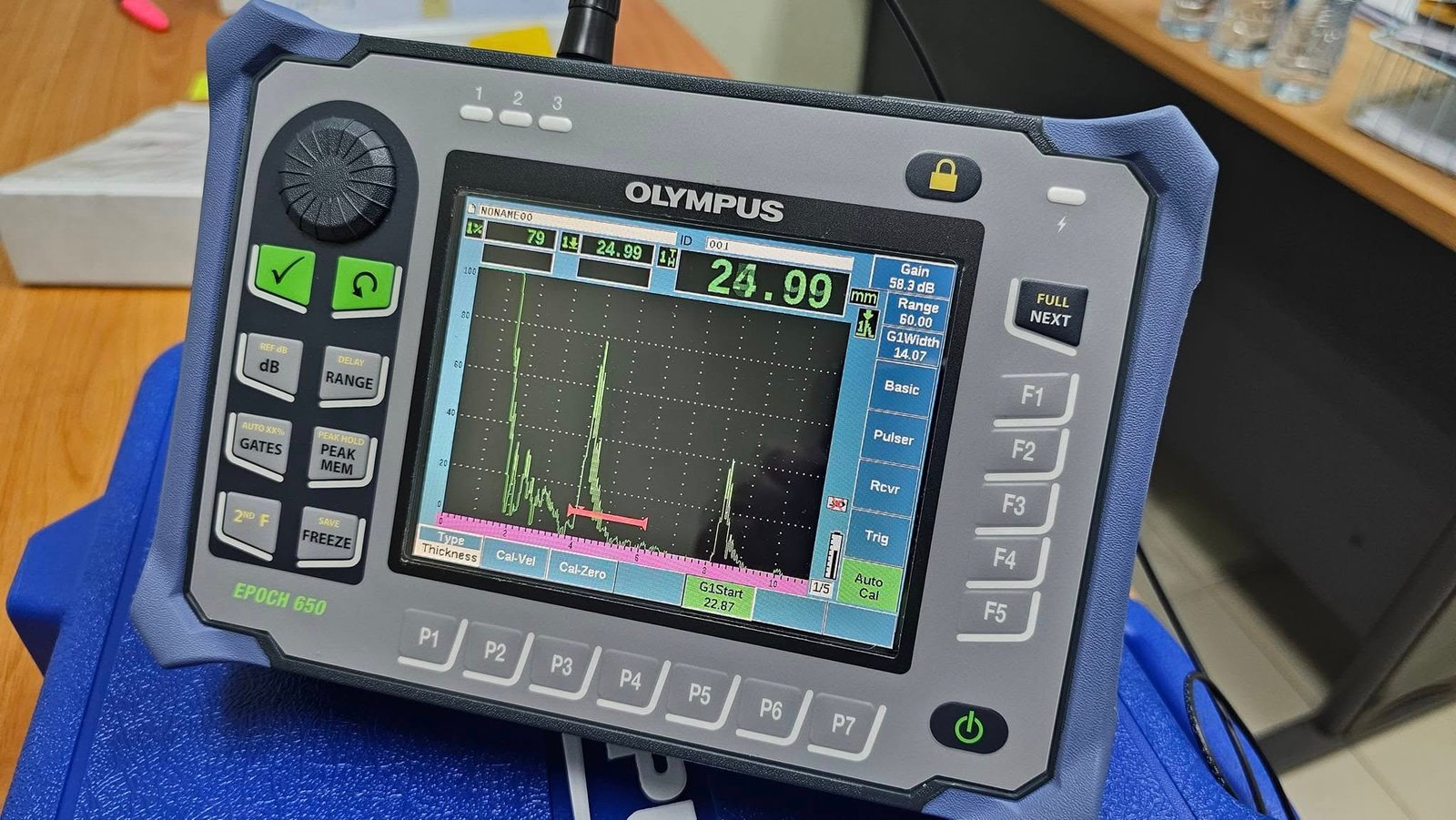

• A-scan display for real-time waveform analysis
• DAC (Distance Amplitude Correction)
• DGS/AVG for defect sizing
• AWS D1.1 weld inspection standards

Large VGA Display with Sunlight Readability

The high-resolution screen ensures clear visibility in both indoor and outdoor conditions, improving usability in various environments.

Long Battery Life

The hot-swappable battery system supports extended operation, reducing downtime during critical inspection tasks.

Applications of EPOCH 650 Ultrasonic Flaw Detector

Weld Inspection

Ensures weld integrity by detecting cracks, porosity, and lack of fusion in welded joints.

Corrosion Monitoring

Measures material thickness and identifies corrosion or erosion in pipelines and structures.

Aerospace Component Testing

Used for inspecting aircraft components where precision and reliability are critical.

Manufacturing Quality Control

Helps maintain product quality by identifying internal defects during production.

Benefits of Using Olympus EPOCH 650

Accurate Defect Detection

High signal quality and advanced analysis tools ensure reliable inspection results.

Improved Productivity

Fast setup and intuitive controls streamline inspection workflows.

Versatile Functionality

Supports a wide range of NDT applications with customizable settings.

Field-Ready Reliability

Designed to perform consistently in challenging industrial environments.

Technical Specifications

Measurement Capabilities

• Ultrasonic flaw detection with A-scan display
• Frequency range: typically 0.2 MHz to 26.5 MHz

Display

• 640 × 480 VGA display
• Full-screen or split-screen viewing modes

Data Storage

• Internal memory for storing inspection data
• USB connectivity for data transfer

Battery

• Lithium-ion battery with long operating time
• Hot-swappable capability

Operating Conditions

• Designed for rugged environments
• Resistant to dust, moisture, and impact

Why Choose Olympus EPOCH 650?

Trusted Industry Brand

Manufactured by Olympus Corporation, a globally recognized leader in precision instruments and NDT solutions.

Advanced Inspection Technology

Combines cutting-edge ultrasonic features with user-friendly operation.

Reliable Performance in the Field

Built for professionals who require consistent accuracy and durability.

Specifications:

USB Ports : USB On-The-Go (OTG)
RS-232 Port : Yes
Video Output : VGA output standard
Analog Output : 1 analog output (optional), Selectable 1 V/10 V Full Scale, 4mA max
Alarm Output : 3 alarm outputs, 5 V TTL, 10 mA
Trigger I/O : Trigger input, 5V TTL;
Trigger output, 5V TTL, 10 mA max
Encoder Inputs : 1-axis encoder line (quadrature – Corrosion Module mode only)

IP Rating : Designed to meet the standards of the Ingress Protection (IP) rating number IP67 (navigation pad version) or IP66 (knob version) per IEC 60529-2004 (Degrees of Protection provided by enclosures – IP Code).
The product design was confirmed to meet the IP rating by means of Olympus internal design verification test process that occurs prior to the release of the product to production.
Explosive Atmosphere : Safe operation as defined by Class I, Division 2, Group D, as defined in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810F, Method 511.4, Procedure I.
Shock Tested : MIL-STD-810F, Method 516.5 Procedure I, 6 cycles each axis, 15g, 11 ms half sine.

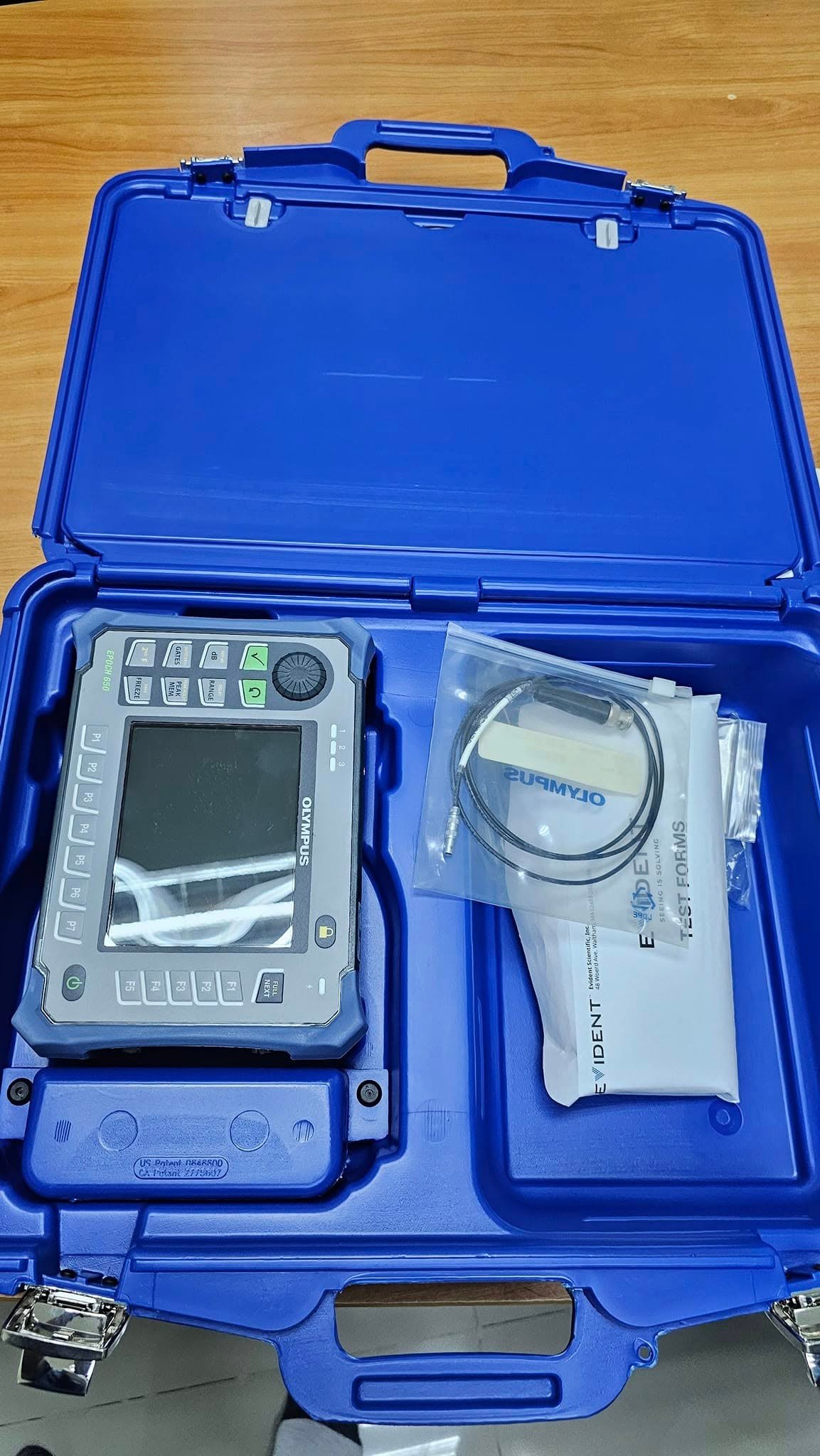

Package includes:

– EPOCH 650 Digital ultrasonic flaw detector, AC or battery operation
– AM4R-8X9-70 probe
– CN4R-10 probe
– AM4R-8X9-45 probe
– AM4R-8X9-60 probe
– A550S-SM probe
– Charger/AC adapter (100 VAC, 115 VAC, 230 VAC, 50 Hz or 60 Hz)
– Rechargeable lithium-ion battery
– USB cable
– Quick reference card
– Comprehensive operation manual (CD)
– Transport case
– Warranty Card
– Calibration Certificate

Warranty Information
2 Years
