RIEGL VZ-1000 3D Laser Scanner – Long-Range High-Performance Terrestrial LiDAR System
Introduction to the RIEGL VZ-1000 3D Laser Scanner
The RIEGL VZ-1000 3D Laser Scanner is a professional long-range terrestrial LiDAR scanning system developed for high-precision 3D reality capture, topographic surveying, mining measurement, infrastructure inspection, industrial documentation, forestry analysis, and geospatial engineering applications. Engineered with advanced time-of-flight laser technology, waveform processing capability, and high-speed point cloud acquisition, the VZ-1000 delivers exceptional scanning performance for large-scale and demanding environments.
Manufactured by RIEGL, the VZ-1000 combines superior range performance, accurate target detection, integrated imaging systems, and rugged industrial durability into a reliable scanning platform optimized for professional surveying and engineering workflows.
Key Features of RIEGL VZ-1000 3D Laser Scanner
Long-Range LiDAR Scanning Capability
The VZ-1000 supports accurate long-distance measurement for extensive infrastructure and terrain projects.
Long-Range Advantages
- Large-area scanning coverage
- Reduced scanner repositioning
- Efficient terrain documentation
- Improved project productivity
High-Precision Time-of-Flight Technology
The advanced time-of-flight laser system provides highly accurate distance measurements.
Accuracy Benefits
- Reliable surface modeling
- Precise terrain analysis
- High-density point clouds
- Detailed engineering documentation
Waveform-LiDAR Processing
Integrated waveform processing technology improves target recognition and data quality.
Waveform Features
- Multiple target detection
- Enhanced vegetation penetration
- Improved measurement reliability
- Better complex surface capture
High-Speed Point Cloud Acquisition
The scanner rapidly captures dense point cloud datasets for efficient project execution.
Speed Benefits
- Fast field data collection
- Reduced scanning time
- Efficient workflow management
- Improved productivity
Integrated Imaging System

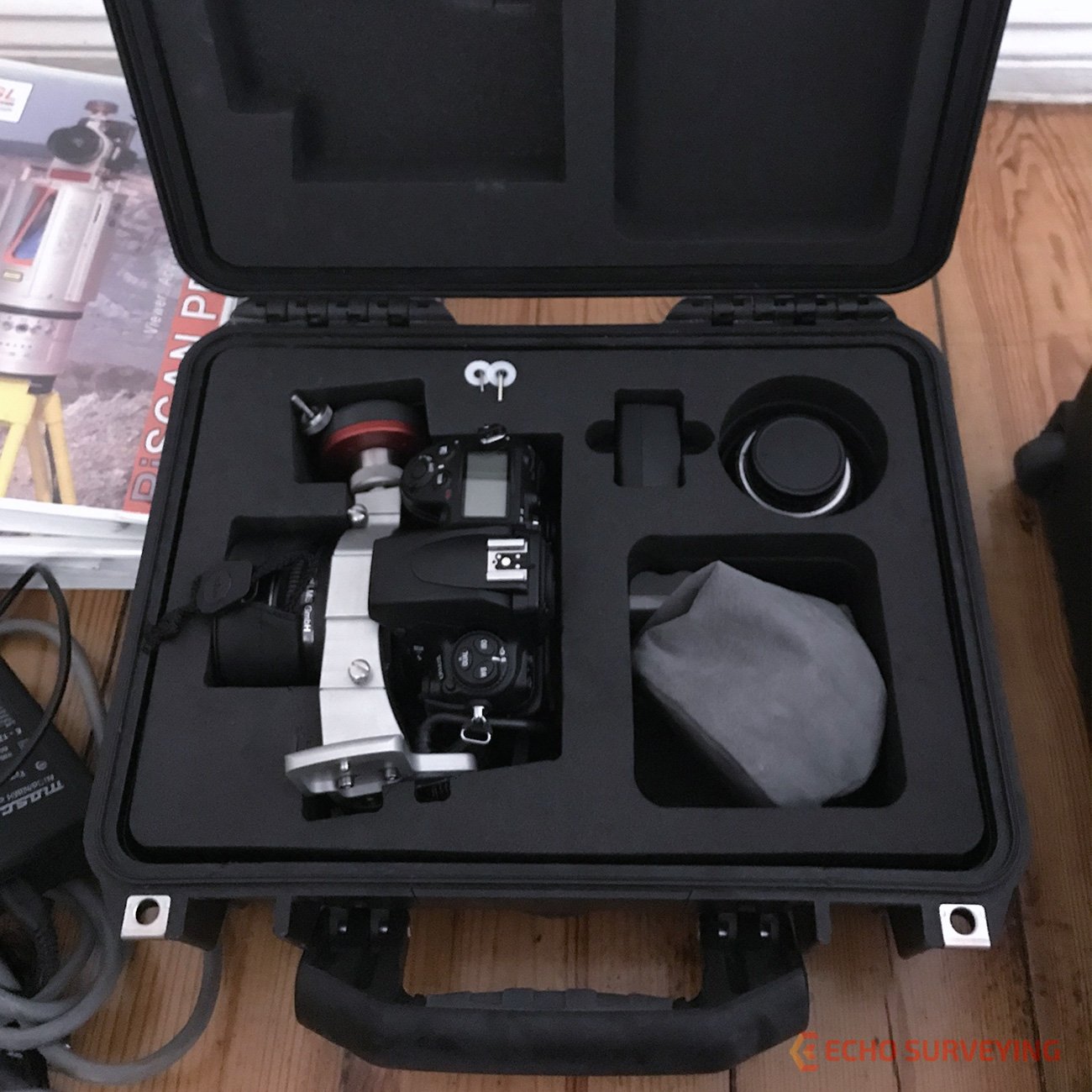

The onboard camera system enhances scan visualization and project documentation.
Imaging Advantages
- Realistic colorized scans
- High-resolution image capture
- Enhanced visual interpretation
- Improved digital documentation
Rugged Industrial Construction
Designed for reliable operation in harsh outdoor and industrial conditions.
Durability Features
- Weather-resistant housing
- Dustproof protection
- Industrial-grade reliability
- Shock-resistant construction
Applications of RIEGL VZ-1000 3D Laser Scanner
Topographic and Geospatial Surveying
Provides accurate terrain measurement and geospatial data collection.
Surveying Applications
- Terrain mapping
- Corridor surveys
- Topographic modeling
- Geodetic measurement
Mining and Quarry Operations
Supports precise mine documentation and volume analysis.
Mining Applications
- Open-pit surveying
- Quarry measurement
- Stockpile calculation
- Slope stability monitoring
Forestry and Environmental Studies
Efficiently captures vegetation and environmental datasets.
Forestry Applications
- Forest inventory
- Biomass estimation
- Vegetation analysis
- Environmental monitoring
Infrastructure and Civil Engineering
Supports accurate infrastructure documentation and structural analysis.
Engineering Applications
- Bridge inspection
- Tunnel measurement
- Highway corridor scanning
- Structural monitoring
Industrial Plant Documentation
Ideal for industrial scanning and facility modernization projects.
Industrial Uses
- Plant documentation
- Equipment positioning
- Factory modeling
- BIM integration
RIEGL VZ-1000 3D Laser Scanner Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Name | RIEGL VZ-1000 3D Laser Scanner |
| Instrument Type | Terrestrial LiDAR Scanner |
| Manufacturer | RIEGL |
| Scanning Technology | Time-of-Flight Waveform-LiDAR |
| Intended Applications | Surveying, Mining, BIM, Infrastructure |
| Data Output | High-Density 3D Point Clouds |
Scanning Specifications
| Parameter | Specification |
|---|---|
| Maximum Measurement Range | Up to 1,400 m |
| Minimum Measurement Range | Approx. 2.5 m |
| Measurement Rate | Up to 122,000 points/sec |
| Range Accuracy | Up to 8 mm |
| Field of View (Vertical) | 100° |
| Field of View (Horizontal) | 360° |
Laser Specifications
| Parameter | Specification |
|---|---|
| Laser Class | Class 1 |
| Laser Wavelength | Near Infrared |
| Measurement Principle | Time-of-Flight |
| Waveform Processing | Supported |
| Multi-Target Detection | Supported |
Point Cloud Specifications
| Parameter | Specification |
|---|---|
| Point Density | Adjustable |
| Scan Resolution | Configurable |
| Real-Time Visualization | Supported |
| Point Cloud Colorization | Supported |
| Automatic Registration | Supported |
Imaging Specifications
| Parameter | Specification |
|---|---|
| Integrated Camera | High-Resolution Digital Camera |
| HDR Imaging | Supported |
| Image Capture | Supported |
| Colorized Point Clouds | Supported |
| Visual Documentation | Supported |
Positioning and Sensor Specifications
| Parameter | Specification |
|---|---|
| Integrated GPS | Supported |
| IMU Integration | Supported |
| Electronic Compass | Supported |
| Tilt Compensation | Supported |
| Advanced Positioning Sensors | Supported |
Connectivity and Communication
| Parameter | Specification |
|---|---|
| Wi-Fi Connectivity | Supported |
| LAN Interface | Supported |
| USB Connectivity | Supported |
| Remote Scanner Operation | Supported |
| Wireless Data Transfer | Supported |
Software Compatibility
| Parameter | Specification |
|---|---|
| RiSCAN PRO Compatibility | Supported |
| CAD Software Integration | Supported |
| BIM Workflow Support | Supported |
| Autodesk ReCap Compatibility | Supported |
| Point Cloud Export Formats | Industry Standard Formats |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Protection Rating | IP64 |
| Dust Protection | Supported |
| Water Resistance | Weather Resistant |
Power Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Operating Time | Up to 5 Hours |
| External Power Support | Supported |
| Power Consumption | Optimized |
| Charging Time | Approx. 3 Hours |
Physical Specifications
| Parameter | Specification |
|---|---|
| Weight | Approx. 13 kg |
| Scanner Design | Industrial Portable Design |
| Housing Material | Reinforced Industrial Housing |
| Mounting System | Standard Heavy-Duty Tripod Mount |
Advantages of RIEGL VZ-1000 3D Laser Scanner
Exceptional Long-Range Scanning Performance
The advanced LiDAR system efficiently captures large-scale environments with high accuracy.
Productivity Benefits
- Reduced scanning positions
- Faster project coverage
- Improved operational efficiency
- Reliable long-distance measurement
Advanced Waveform-LiDAR Accuracy
Designed for complex geospatial and industrial environments.
Accuracy Advantages
- Reliable multi-target detection
- Detailed terrain capture
- Enhanced vegetation penetration
- Accurate surface analysis
Efficient Workflow Integration
The scanner supports seamless integration with engineering and BIM workflows.
Workflow Features
- Real-time project verification
- Faster data processing
- BIM-ready point clouds
- CAD software compatibility
Rugged Industrial Reliability
Built for demanding outdoor and industrial applications.
Durability Benefits
- Weather-resistant performance
- Dustproof protection
- Long operational lifespan
- Reliable field operation
Industries That Use RIEGL VZ-1000 3D Laser Scanner
Surveying and Geospatial Industry
- Topographic surveys
- Corridor mapping
- Terrain analysis
Mining Industry
- Stockpile monitoring
- Open-pit mine documentation
- Quarry analysis
Forestry and Environmental Monitoring
- Vegetation mapping
- Biomass estimation
- Environmental analysis
Industrial and Infrastructure Engineering
- Facility scanning
- Structural inspection
- Infrastructure documentation
