Sonatest Veo3 Ultrasonic Flaw Detector – High-Performance Multi-Technique Inspection

The Sonatest Veo3 Ultrasonic Flaw Detector is a powerful and versatile inspection system designed to deliver high accuracy and efficiency in non-destructive testing (NDT). Built on advanced digital technology, the Veo3 enables inspectors to perform complex inspections with confidence while maintaining familiar workflows.

Overview of the Veo3 Ultrasonic Flaw Detector

The Veo3 builds on the proven performance of the Veo series, introducing enhanced processing power, live total focusing method (TFM), and an intuitive touch interface. It supports multiple ultrasonic techniques simultaneously, allowing users to gain deeper insights without changing inspection procedures.

Key Highlights

• Live TFM, PAUT, and TOFD in one platform
• Advanced digital signal processing for superior accuracy
• PCAP touchscreen interface for smooth navigation
• Real-time multi-scan and multi-technique capability
• High-capacity data storage with fast processing

Advanced Multi-Technique Capabilities

The Veo3 is designed to support multiple inspection techniques simultaneously, improving efficiency and accuracy.

Simultaneous Inspection Modes

Inspectors can run phased array (PA), total focusing method (TFM), and time-of-flight diffraction (TOFD) at the same time, providing comprehensive inspection data in a single scan.

Enhanced Defect Detection

By combining multiple techniques, users can better detect, size, and characterize flaws, especially in complex welds and materials.

Workflow Compatibility

The system allows inspectors to continue using established procedures while benefiting from advanced imaging technologies.

Superior Digital Technology and Performance

The Veo3 is powered by a high-performance digital platform designed for fast and accurate data processing.

High Data Throughput

A 32-channel phased array beamformer ensures strong signal quality and improved signal-to-noise ratio (SNR).

Advanced Processing Power

• Sampling frequency up to 125 MHz
• Gain range up to 80 dB
• Up to 1024 focal laws without performance loss

Large Data Storage Capacity

The integrated 128 GB SSD and 64-bit operating system enable storage of large datasets, supporting detailed inspections and analysis.

Live TFM and FMC Capabilities

One of the standout features of the Veo3 is its ability to perform advanced imaging using FMC and TFM.

Real-Time TFM Imaging

The system can generate multiple live TFM scans simultaneously, offering high-resolution images for accurate flaw evaluation.

TFMi Technology

TFMi enhances defect visualization by improving shape accuracy and height measurement compared to traditional phased array methods.

Full Matrix Capture (FMC)

All FMC data can be recorded for further analysis, enabling comparison with previous inspections to monitor defect growth and trends.

Intuitive Interface and Smart Workflow

The Veo3 is designed with usability in mind, making complex inspections easier to manage.

Touchscreen Interface

The PCAP touch display provides a responsive and modern user experience.

Guided Setup Wizards

Built-in wizards assist with calibration and setup tasks, including:

• Sound velocity calibration
• Wedge delay adjustment
• TCG and DAC setup
• TOFD configuration
• Encoder calibration

3D Scan Plan Visualization

A real-time 3D inspection plan shows probe positioning on the test object, simplifying setup and improving reporting accuracy.

Efficient Data Management and Reporting

The Veo3 includes integrated tools to streamline data handling and reporting.

Onboard Reporting Features

• Automatic PDF report generation
• CSV data export
• Screen capture functionality

Data Analysis and Storage

Large datasets can be stored and reviewed directly on the device, enabling detailed post-inspection analysis.

Built for Industrial Environments

The Veo3 is engineered to perform reliably in demanding conditions.

Durable Design

• IP66-rated protection against dust and water
• Robust construction for field use

Long Battery Life

Hot-swappable batteries provide up to 6 hours of operation, ensuring continuous inspection without interruption.

Technical Specifications Overview

Phased Array Performance

• Configuration: 32:128PR
• Sampling Frequency: 125 MHz
• System Bandwidth: 0.2 to 23 MHz
• Maximum Pulse Rate: 50,000 Hz

Imaging and Resolution

• S-scan resolution up to 0.1°
• Up to 1024 focal laws
• High-resolution TFM imaging

Physical Specifications

• Dimensions: 115 × 220 × 225 mm
• Weight: approximately 5.1 kg (without battery)
• Operating time: up to 6 hours

Applications Across Industries

The Veo3 is suitable for a wide range of inspection tasks:

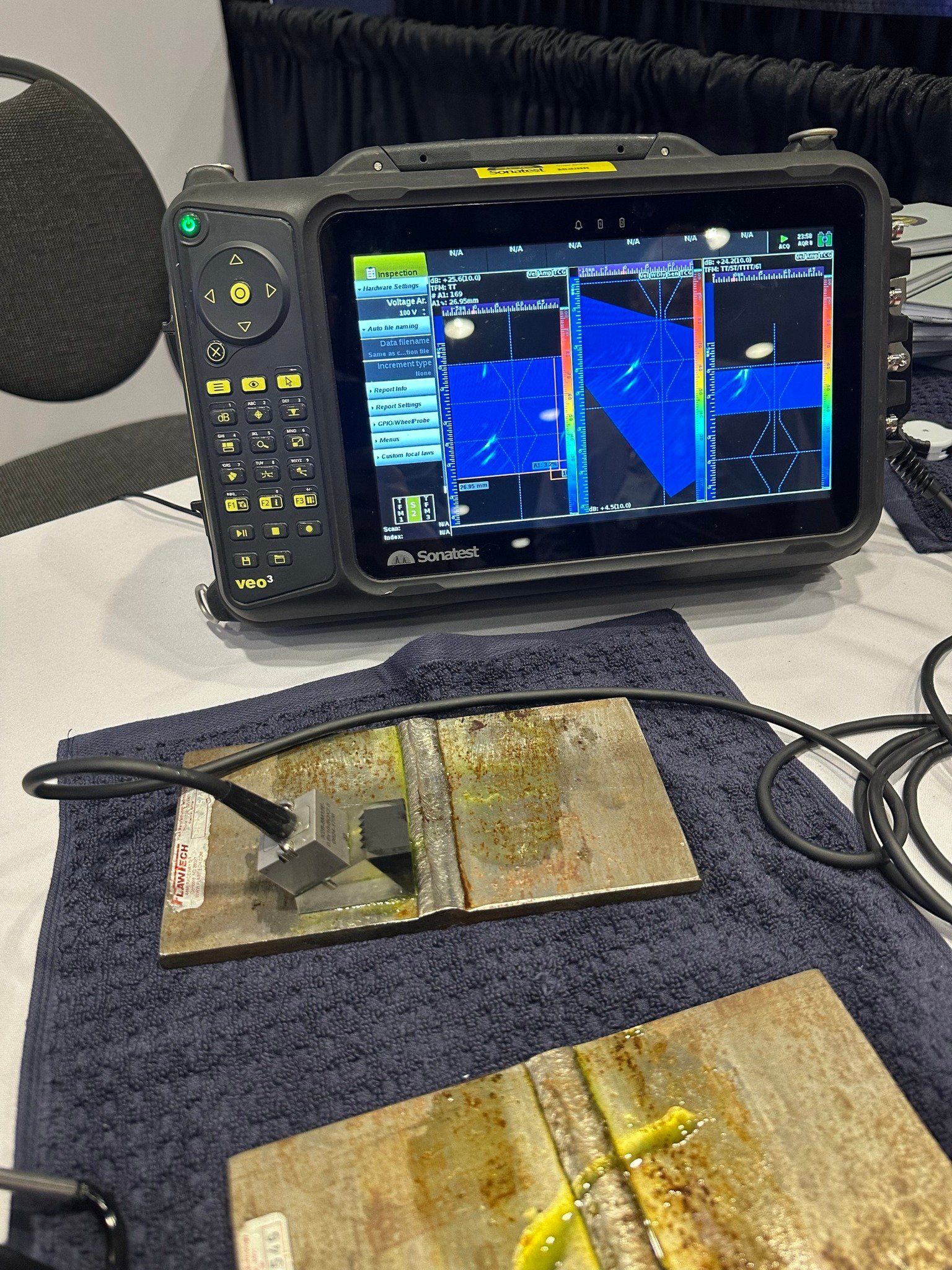

Weld Inspection

Accurate detection and characterization of weld defects in pipelines and structural components.

Oil and Gas

Inspection of critical assets such as pipelines and pressure vessels.

Power Generation

Evaluation of turbines, boilers, and other high-value components.

Manufacturing

Quality control and defect detection in industrial production processes.

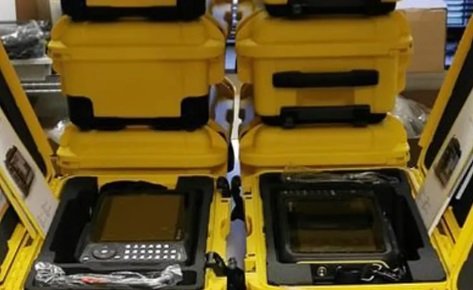

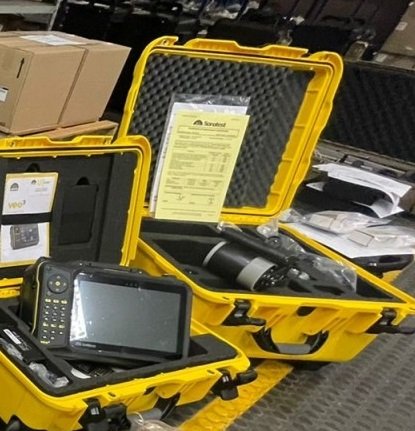

Package Contents

The Veo3 system is delivered with essential accessories for immediate use:

• Veo3 phased array flaw detector
• Two lithium-ion batteries
• USB storage device
• AC/DC power adapter
• User manuals and quick start guide
• Carry strap and transport case
• Screen protector
• Software license (UTstudio)
• Calibration certificate and warranty card

Why Choose the Sonatest Veo3?

The Veo3 stands out for its combination of advanced imaging, real-time multi-technique capability, and intuitive operation. It enables inspectors to achieve higher accuracy, improved efficiency, and better confidence in their inspection results.

Warranty Information
2 Years
