Product details

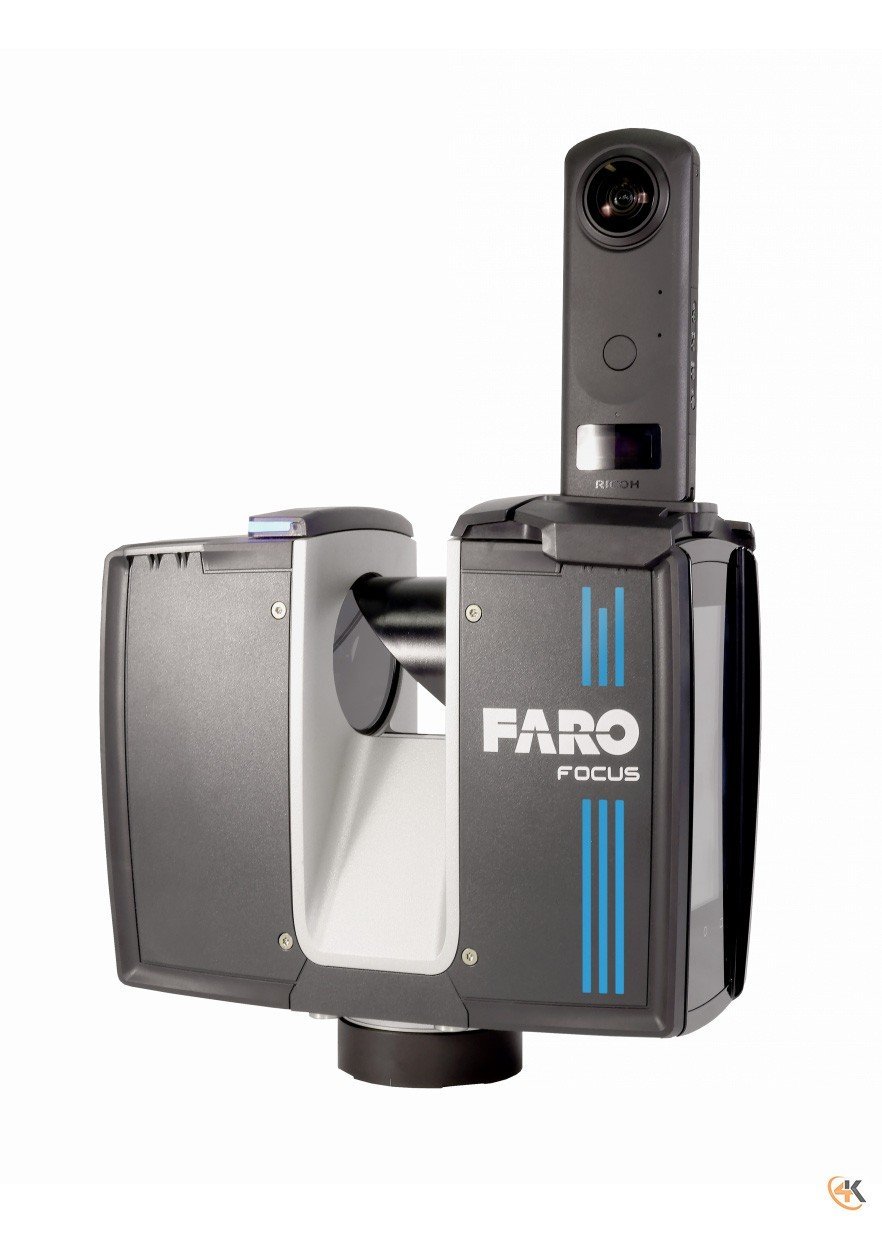

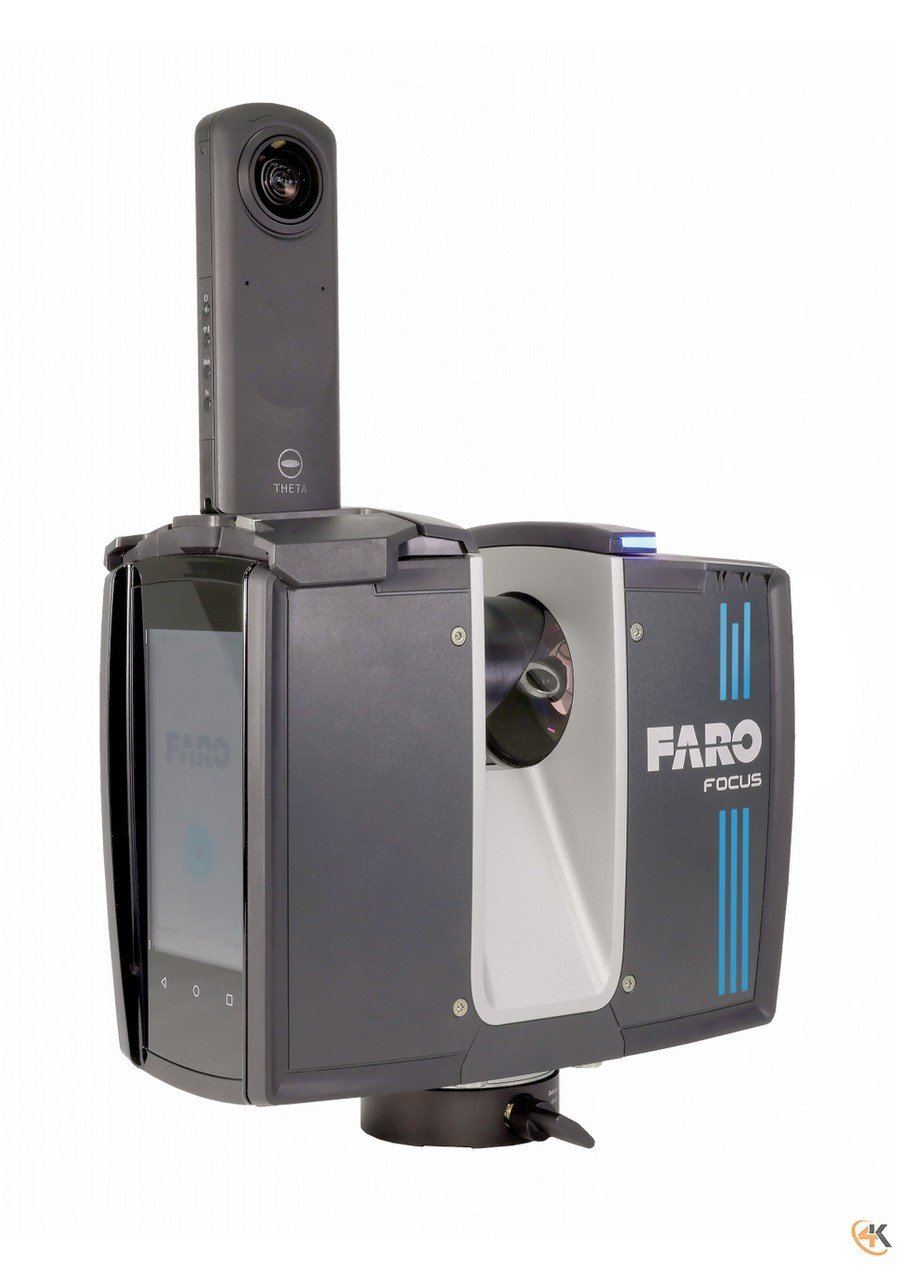

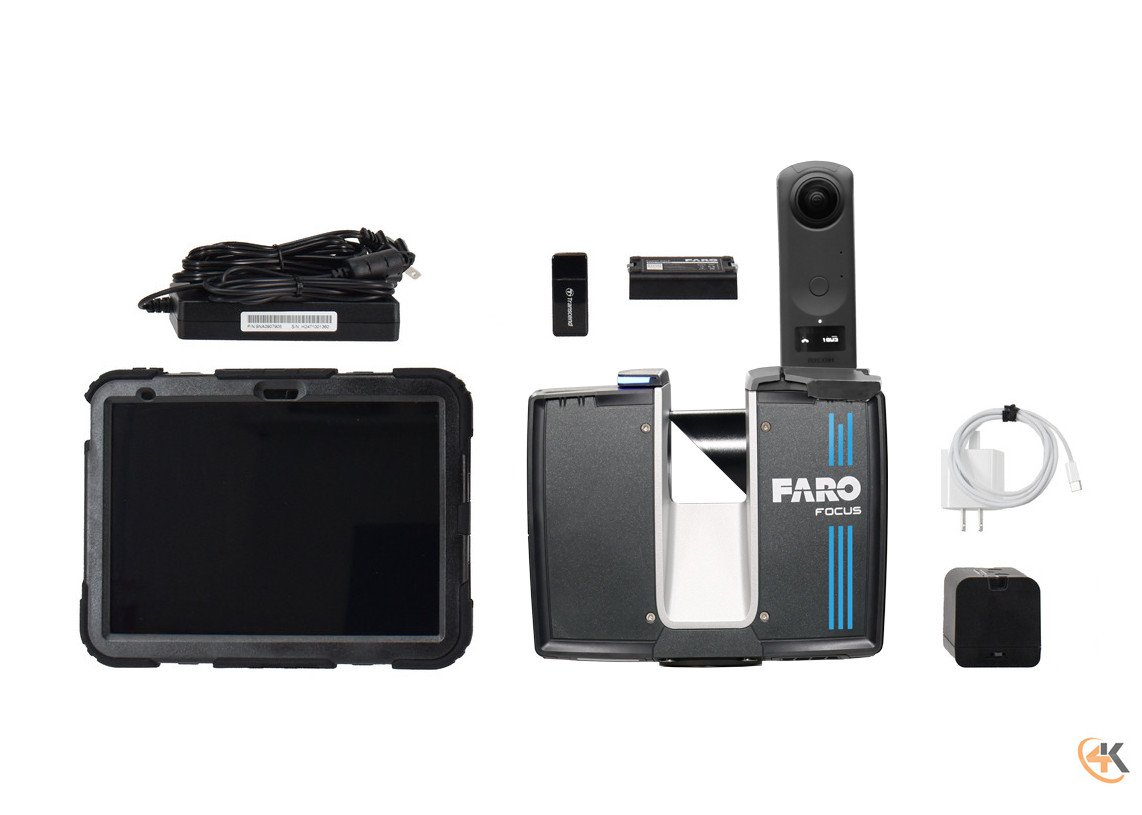

FARO Focus 200M 3D Scanner – High-Precision Laser Scanning Solution for Professional Reality Capture
Introduction to the FARO Focus 200M 3D Scanner
The FARO Focus 200M 3D Scanner is a professional terrestrial laser scanning system engineered for high-accuracy 3D reality capture, architectural documentation, industrial measurement, BIM modeling, forensic analysis, and infrastructure surveying applications. Designed with advanced laser scanning technology, high-speed point cloud acquisition, and exceptional portability, the Focus 200M delivers reliable scanning performance for demanding field environments.
Developed by FARO Technologies, the Focus 200M combines precision distance measurement, HDR imaging, intelligent data processing, and lightweight field mobility into a compact scanning platform capable of generating highly detailed 3D models and point clouds for engineering and geospatial professionals.
Key Features of FARO Focus 200M 3D Scanner
High-Accuracy Laser Scanning Technology
The Focus 200M provides highly detailed and precise point cloud data for professional measurement applications.
Accuracy Benefits
- High-density point cloud capture
- Precise 3D measurements
- Accurate surface modeling
- Reliable engineering documentation
Long-Range Scanning Capability
The scanner supports extended measurement distances for large-scale projects.
Scanning Advantages
- Long-range object capture
- Efficient large-area scanning
- Reduced setup positions
- Faster project completion
High-Speed Point Cloud Acquisition
The advanced laser engine captures millions of measurement points rapidly.
Speed Benefits
- Fast data collection
- Efficient workflow performance
- Reduced field time
- Improved project productivity
Integrated HDR Camera System
The onboard imaging system captures realistic color information alongside scan data.
Imaging Features
- HDR image capture
- Realistic texture mapping
- Enhanced visual documentation
- Improved model visualization
Compact and Lightweight Design
The portable design improves mobility and ease of operation in the field.
Portability Features
- Lightweight transport
- Easy deployment
- Compact field setup
- Improved scanning flexibility
Rugged Environmental Protection
Built for reliable operation in challenging industrial and outdoor environments.
Durability Features
- Dust-resistant housing
- Weather-resistant construction
- Industrial-grade protection
- Reliable outdoor operation
Applications of FARO Focus 200M 3D Scanner
Architecture and Building Documentation
Provides detailed 3D building capture for architecture and renovation projects.
Architectural Applications
- Building documentation
- Heritage preservation
- Interior scanning
- Renovation planning
BIM and Digital Construction
Supports accurate BIM workflows and digital construction processes.
BIM Applications
- As-built modeling
- BIM verification
- Clash detection
- Construction progress monitoring
Industrial Plant Scanning
Ideal for industrial facility measurement and plant documentation.
Industrial Uses
- Factory measurement
- Piping documentation
- Equipment positioning
- Plant modernization
Infrastructure and Civil Engineering
Supports infrastructure measurement and engineering analysis.
Engineering Applications
- Bridge inspection
- Tunnel documentation
- Roadway scanning
- Structural analysis
Public Safety and Forensics
Provides accurate scene documentation for investigation applications.
Forensic Applications
- Crime scene capture
- Accident reconstruction
- Evidence documentation
- Scene preservation
FARO Focus 200M 3D Scanner Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Name | FARO Focus 200M 3D Scanner |
| Instrument Type | Terrestrial Laser Scanner |
| Manufacturer | FARO Technologies |
| Scanning Technology | Phase Shift Laser Scanning |
| Intended Applications | BIM, Surveying, Industrial Scanning |
| Data Output | 3D Point Cloud |
Scanning Specifications
| Parameter | Specification |
|---|---|
| Maximum Scanning Range | Up to 200 m |
| Minimum Range | 0.6 m |
| Measurement Speed | Up to 976,000 points/sec |
| Distance Accuracy | ±2 mm |
| Vertical Field of View | 300° |
| Horizontal Field of View | 360° |
Laser Specifications
| Parameter | Specification |
|---|---|
| Laser Class | Class 1 |
| Laser Wavelength | Near Infrared |
| Measurement Principle | Phase Shift |
| Reflectorless Measurement | Supported |
| Eye Safety Standard | IEC Certified |
Point Cloud Specifications
| Parameter | Specification |
|---|---|
| Point Density | Adjustable |
| Scan Resolution | Multiple Resolution Levels |
| Scan Quality Settings | Configurable |
| Real-Time Visualization | Supported |
| Point Cloud Colorization | Supported |
Imaging Specifications
| Parameter | Specification |
|---|---|
| Integrated Camera | HDR Camera System |
| Color Capture | Supported |
| Image Resolution | High Resolution |
| HDR Imaging | Supported |
| Texture Mapping | Supported |
Positioning and Sensors
| Parameter | Specification |
|---|---|
| Integrated GPS | Supported |
| Electronic Compass | Supported |
| Altimeter | Supported |
| Dual-Axis Compensator | Supported |
| Tilt Sensor | Supported |
Data Storage and Connectivity
| Parameter | Specification |
|---|---|
| Internal Storage | SD Card Storage |
| Wi-Fi Connectivity | Supported |
| USB Interface | Supported |
| Ethernet Support | Supported |
| FARO Software Compatibility | Supported |
Software Compatibility
| Parameter | Specification |
|---|---|
| FARO SCENE Compatibility | Supported |
| Autodesk Compatibility | Supported |
| ReCap Compatibility | Supported |
| BIM Software Support | Supported |
| Point Cloud Export Formats | Industry Standard Formats |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -10°C to +60°C |
| Protection Rating | IP54 |
| Dust Resistance | Supported |
| Humidity Resistance | Supported |
Power Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Operating Time | Up to 4.5 Hours |
| Hot Swap Battery | Supported |
| External Power Support | Supported |
| Charging Time | Approx. 3 Hours |
Physical Specifications
| Parameter | Specification |
|---|---|
| Weight | Approx. 5.0 kg |
| Dimensions | Compact Portable Design |
| Housing Material | Reinforced Industrial Housing |

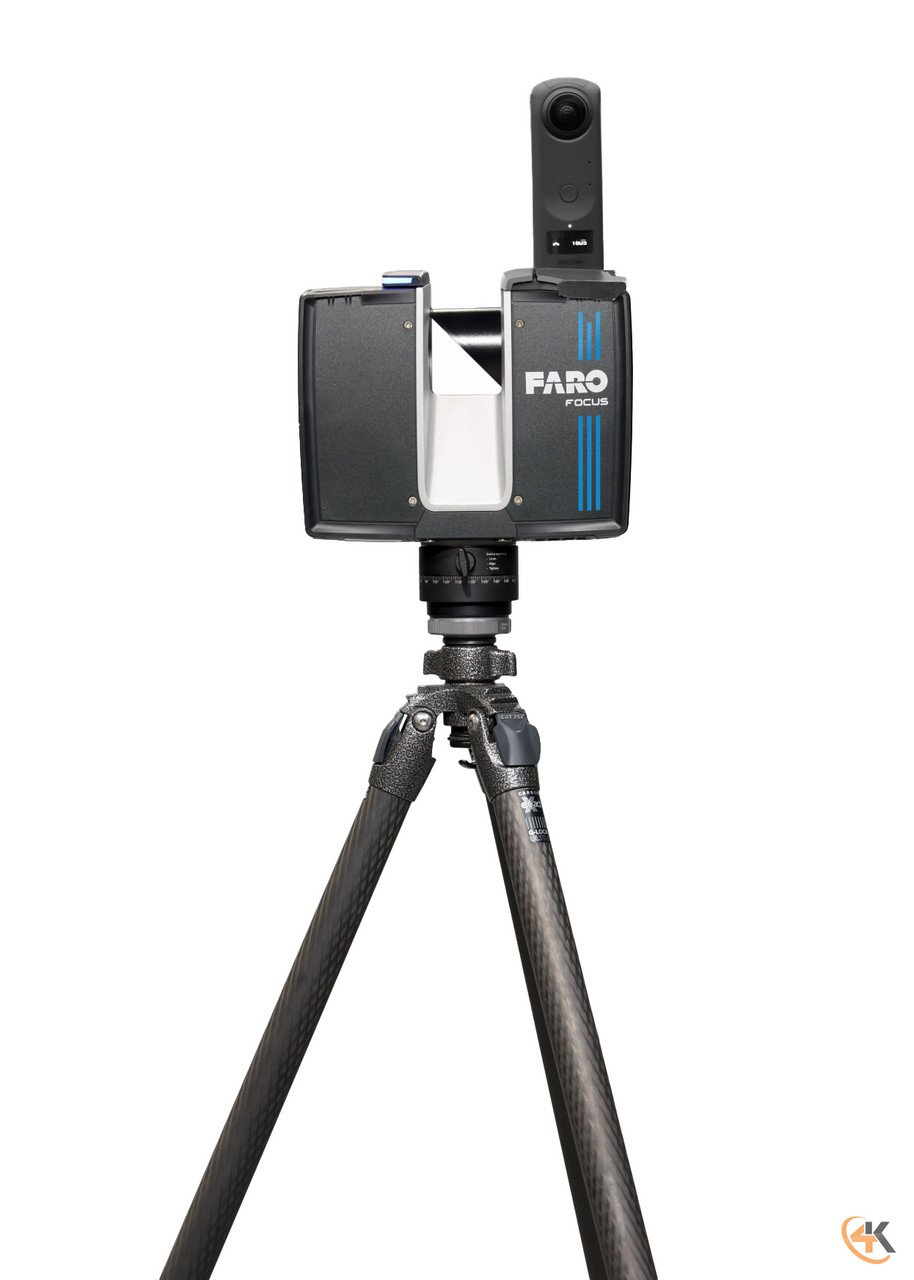

| Mounting System | Standard Tripod Mount |
Advantages of FARO Focus 200M 3D Scanner
High-Speed Reality Capture
The scanner rapidly captures detailed 3D environments with high efficiency.
Productivity Benefits
- Faster site documentation
- Reduced field labor
- Efficient large-area scanning
- Improved project turnaround time
Exceptional Measurement Accuracy
Designed for precise industrial and engineering applications.
Accuracy Advantages
- High-density point clouds
- Reliable surface measurements
- Accurate 3D modeling
- Consistent scan quality
Portable and Lightweight Operation
The compact design improves field flexibility and mobility.
Portability Benefits
- Easy transportation
- Quick deployment
- Efficient indoor and outdoor scanning
- Reduced operator fatigue
Advanced BIM and CAD Integration
Supports modern digital construction and engineering workflows.
Workflow Features
- BIM-ready point clouds
- CAD integration
- Digital twin workflows
- As-built documentation
Industries That Use FARO Focus 200M 3D Scanner
Architecture and Construction
- Building documentation
- Renovation planning
- BIM modeling
Industrial Engineering
- Plant scanning
- Factory measurement
- Equipment alignment
Surveying and Geospatial
- Infrastructure scanning
- Topographic capture
- Engineering surveys
Public Safety and Forensics
- Accident reconstruction
- Crime scene documentation
- Evidence preservation
