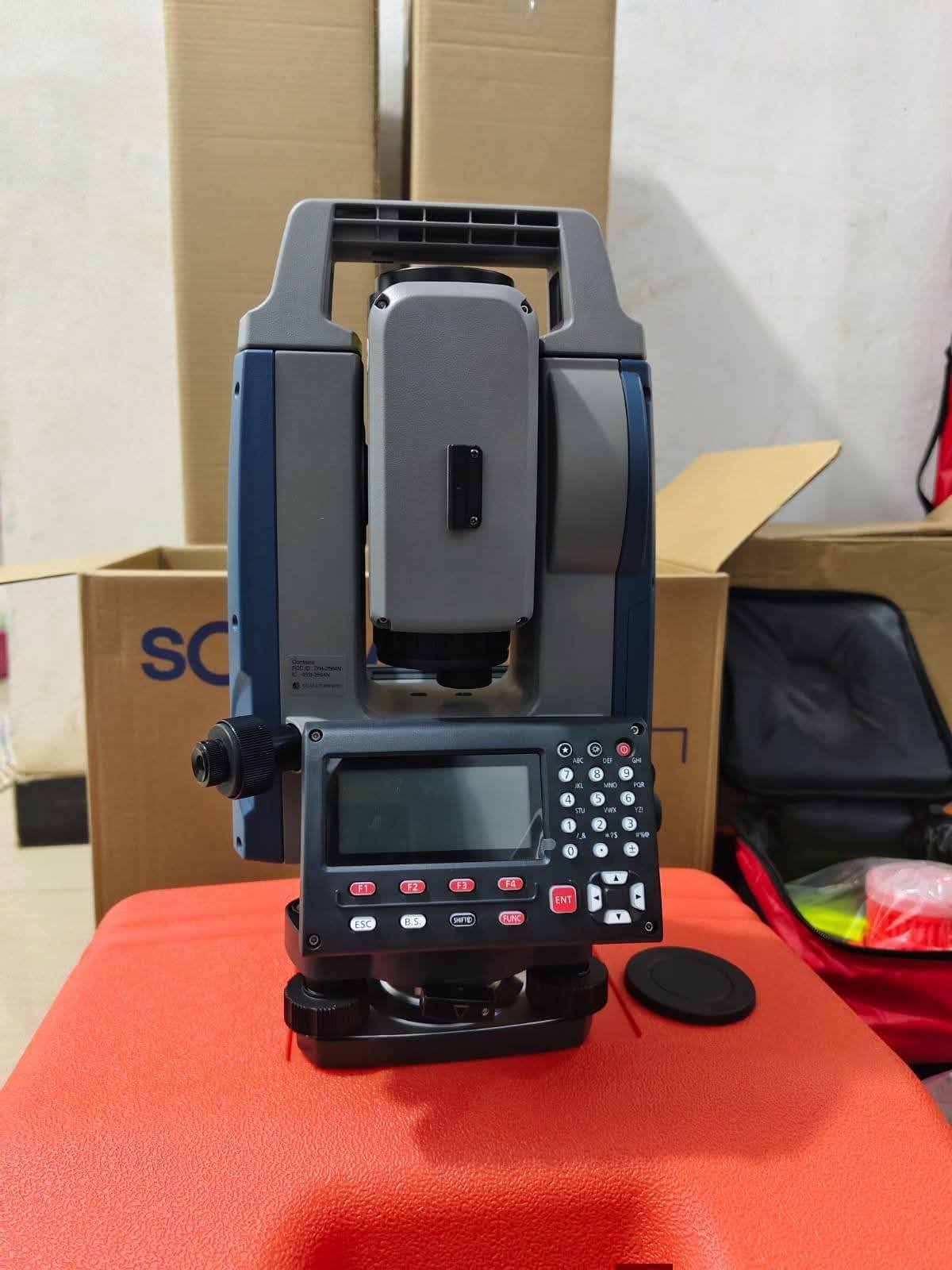

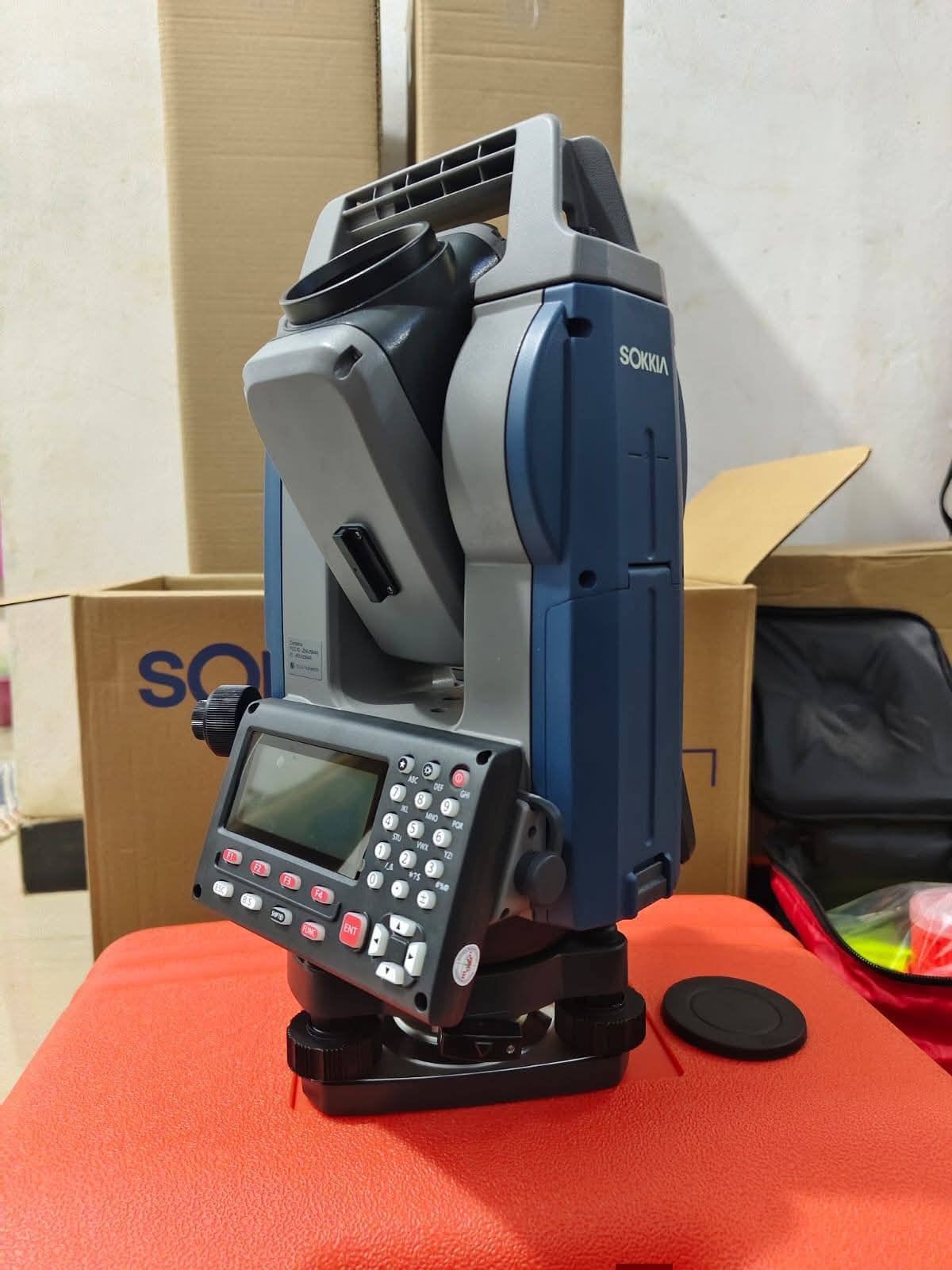

Sokkia iM-52 Survey Station – Advanced Manual Total Station for Precision Surveying
Introduction to the Sokkia iM-52 Survey Station
The Sokkia iM-52 Survey Station is a professional-grade manual total station designed for accurate surveying, construction layout, topographic mapping, civil engineering, and infrastructure measurement applications. Built with advanced EDM technology, rugged durability, and intuitive onboard software, the iM-52 delivers reliable field performance even in demanding environmental conditions.
Engineered for surveyors and construction professionals, the Sokkia iM-52 combines precision angle measurement, long-range reflectorless distance measurement, fast data acquisition, and dependable operation into a compact and field-ready instrument.
Key Features of Sokkia iM-52 Survey Station
High-Precision Angle Measurement
The iM-52 provides reliable angular accuracy for precise field measurements and construction layout operations.
Benefits
- Accurate horizontal and vertical angle measurement
- Stable surveying performance
- Reduced field errors
- Suitable for engineering-grade applications
Long-Range Reflectorless EDM Technology
Advanced Electronic Distance Measurement (EDM) technology allows long-distance measurements without requiring a prism.
EDM Advantages
- Fast distance acquisition
- Reflectorless measurement capability
- High reliability in field conditions
- Improved efficiency on inaccessible targets
Rugged Waterproof Construction
Designed to operate in harsh environments, the total station features weather-resistant protection and durable construction.
Durability Features
- Dustproof housing
- Water-resistant body
- Shock-resistant structure
- Reliable operation in extreme environments
Integrated Survey Software
The onboard software improves productivity with efficient data collection and layout tools.
Software Functions
- Coordinate measurement
- Stake-out
- Resection
- Area calculation
- Missing line measurement
Extended Battery Performance
The iM-52 supports long working hours for uninterrupted field operations.
Power Advantages
- Long-lasting battery life
- Reduced downtime
- Field-ready power management
- Efficient energy consumption
Applications of Sokkia iM-52 Survey Station
Land Surveying
Ideal for professional land surveying and boundary mapping projects.
Survey Applications
- Boundary surveys
- Topographic mapping
- Control surveys
- Land subdivision
Construction Layout
Provides accurate positioning for construction and infrastructure development.
Construction Uses
- Building layout
- Foundation positioning
- Structural alignment
- Utility installation
Civil Engineering Projects
Supports precise data collection for infrastructure planning and verification.
Engineering Applications
- Road surveying
- Bridge construction
- Tunnel alignment
- Drainage measurement
Mining and Quarry Surveying
Reliable measurement performance for industrial and mining operations.
Mining Uses
- Volume calculations
- Site mapping
- Excavation monitoring
- Stockpile measurement
Sokkia iM-52 Survey Station Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Name | Sokkia iM-52 Survey Station |
| Instrument Type | Manual Total Station |
| Series | iM Series |
| Application | Surveying & Construction |
| Display Type | Dual LCD Display |
| Keyboard | Alphanumeric Keyboard |
| Operating System | Integrated Survey Software |
Telescope Specifications
| Parameter | Specification |
|---|---|
| Telescope Length | 171 mm |
| Objective Aperture | 45 mm (EDM: 48 mm) |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1°30′ |
| Minimum Focus | 1.3 m |
Angle Measurement Specifications
| Parameter | Specification |
|---|---|
| Angle Accuracy | 2 Arc Seconds |
| Angle Reading System | Absolute Encoder |
| Minimum Reading | 1” / 5” Selectable |
| Compensation System | Dual-Axis Compensator |
| Compensator Range | ±6′ |
Distance Measurement Specifications
| Parameter | Prism Mode | Reflectorless Mode |
|---|---|---|
| Measurement Range | Up to 4,000 m | Up to 500 m |
| Accuracy | ±(2 mm + 2 ppm) | ±(3 mm + 2 ppm) |
| Measurement Time | Fine: Approx. 1 sec | Approx. 1 sec |
| Laser Type | Class 1 Laser | Class 3R Laser |
Data Storage and Communication
| Parameter | Specification |
|---|---|
| Internal Memory | Approx. 50,000 Points |
| USB Port | Supported |
| Serial Communication | RS-232C |
| Data Transfer | USB / Cable Transfer |
| File Export | Compatible Formats |
Display and Interface
| Parameter | Specification |
|---|---|
| Display Type | Graphic LCD |
| Display Configuration | Dual Face Display |
| Illumination | Backlit Screen |
| Keyboard Type | Full Alphanumeric |
| Interface Language | Multiple Languages |
Laser Plummet Specifications
| Parameter | Specification |
|---|---|
| Plummet Type | Laser Plummet |
| Positioning Accuracy | High Precision |
| Brightness Adjustment | Supported |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP66 |
| Humidity Resistance | High Durability |
Power Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Operating Time | Up to 28 Hours |
| Charging Time | Approx. 4 Hours |
| Power Supply | DC Input Supported |
Physical Specifications
| Parameter | Specification |
|---|---|
| Weight | Approx. 5.3 kg |
| Dimensions | Compact Field Design |
| Housing Material | Industrial Reinforced Body |
| Mount Type | Standard Tribrach Compatible |
Advantages of Sokkia iM-52 Survey Station
Exceptional Field Reliability
The iM-52 is engineered for dependable operation in harsh outdoor environments.
Reliability Benefits
- Weather-resistant design
- Durable construction
- Stable measurement performance
- Reliable long-term operation
Easy-to-Use Interface
Designed for both experienced surveyors and new operators.
User-Friendly Features
- Intuitive menus
- Fast setup process
- Simplified workflows
- Easy data management
High Measurement Efficiency
The fast EDM system reduces survey completion time while maintaining precision.
Productivity Advantages
- Rapid target acquisition
- Efficient data collection
- Faster field operations
- Improved project turnaround
Industries That Use Sokkia iM-52 Survey Station
Construction Industry
- Building layout
- Site positioning
- Structural alignment
Civil Engineering
- Infrastructure measurement
- Road surveying
- Utility mapping
Land Development
- Property boundary surveys
- Topographic surveys
- Site planning
Mining Industry
- Quarry mapping
- Excavation monitoring
- Volume analysis
