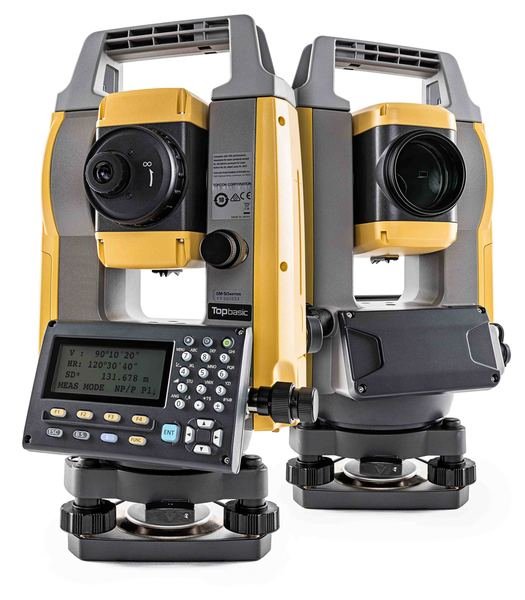

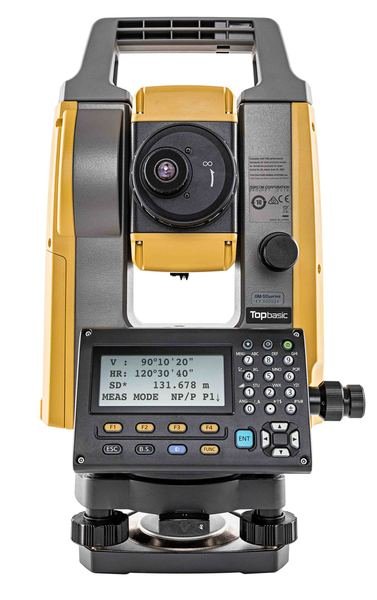

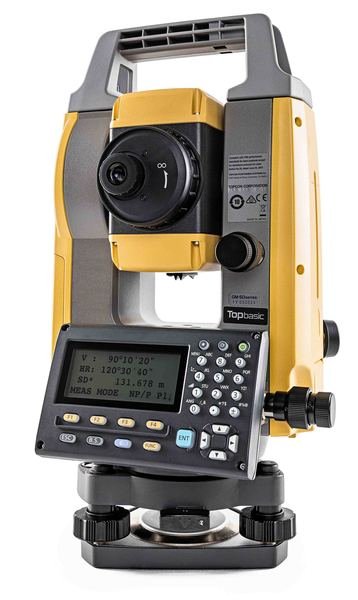

Topcon GM-55 Survey Station
Advanced Manual Total Station for High-Precision Surveying and Construction
The Topcon GM-55 Survey Station is a professional-grade manual total station engineered for surveyors, construction professionals, civil engineers, and infrastructure specialists who require reliable performance, high measurement accuracy, and durable field operation. Combining advanced EDM technology, rugged construction, long battery life, and intuitive onboard software, the GM-55 delivers exceptional productivity across a wide range of surveying applications.
Designed for demanding field conditions, the GM-55 offers fast prism and reflectorless measurements, precise angle accuracy, and superior environmental protection, making it an ideal instrument for modern construction layout, topographic surveys, and engineering projects.
Why Choose the Topcon GM-55 Survey Station?
The GM-55 is built to provide dependable measurement performance while maintaining ease of operation and excellent long-term reliability.
Main Advantages
- High-precision 5” angular accuracy
- Long-range reflectorless EDM
- Fast distance measurements
- Rugged waterproof design
- Long battery runtime
- Dual-axis compensation
- Large internal memory capacity
- USB data transfer support
- Bright backlit display
- Durable field-ready construction
Its balance of precision, efficiency, and affordability makes the GM-55 a popular choice for survey professionals worldwide.
Key Features of the Topcon GM-55
Advanced EDM Technology
Long-Range Reflectorless Measurements
The Topcon GM-55 is equipped with advanced EDM technology capable of fast and highly accurate measurements over long distances.
Distance Measurement Range
| Measurement Mode | Range |
|---|---|
| Reflectorless | Up to 500 m |
| Single Prism | Up to 4,000 m |
| Prism Sheet | Up to 500 m |
Distance Measurement Accuracy
| Mode | Accuracy |
|---|---|
| Prism Mode | ±(1.5 mm + 2 ppm) |
| Reflectorless Mode | ±(2 mm + 2 ppm) |
Measurement Time
| Mode | Time |
|---|---|
| Fine Measurement | Approximately 0.9 sec |
| Rapid Measurement | Approximately 0.7 sec |
| Tracking Measurement | Approximately 0.3 sec |
The high-speed EDM system improves productivity during stakeout and topographic survey operations.
High-Precision Angle Measurement
Reliable Angular Accuracy
The GM-55 delivers precise angular measurements suitable for professional surveying and engineering applications.
| Feature | Specification |
|---|---|
| Angular Accuracy | 5” |
| Angle Measurement System | Absolute Encoder |
| Minimum Reading | 1” / 5” Selectable |
| Dual Display | Available |
| Compensation System | Dual-Axis |
The advanced angle encoder system ensures reliable and repeatable measurements in field conditions.
Rugged Field Durability
Built for Harsh Jobsite Conditions
The Topcon GM-55 is engineered for reliable operation in challenging outdoor environments.
Environmental Protection
| Feature | Specification |
|---|---|
| Protection Rating | IP66 |
| Dust Resistance | Fully Protected |
| Water Resistance | Waterproof |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
Its rugged housing protects the instrument from dust, heavy rain, humidity, and harsh environmental conditions commonly encountered on construction and infrastructure projects.
Topcon GM-55 Technical Specifications
Telescope Specifications
| Feature | Specification |
|---|---|
| Telescope Magnification | 30x |
| Objective Aperture | 45 mm |
| Resolving Power | 2.5” |
| Field of View | 1°30’ |
| Minimum Focus Distance | 1.3 m |
| Image | Erect |
The high-performance optics provide excellent visibility and target clarity under varying lighting conditions.
Compensator Specifications
Automatic Tilt Correction
| Feature | Specification |
|---|---|
| Compensator Type | Dual-Axis Liquid Tilt Sensor |
| Compensation Range | ±6’ |
| Compensation Accuracy | 1” |
The automatic compensator minimizes setup errors and improves overall measurement reliability.
Display and User Interface
Easy-to-Operate Interface
The GM-55 is designed with an intuitive interface that simplifies field operations for survey crews.
User Interface Features
- Backlit LCD Display
- Alphanumeric Keyboard
- Function Shortcut Keys
- Graphical User Interface
- Simple Data Management
Display Configuration
| Feature | Specification |
|---|---|
| Display Type | LCD |
| Backlight | Yes |
| Face Display Options | Single or Dual |
| Keyboard Type | Alphanumeric |
The ergonomic keypad and display layout allow efficient operation during extended fieldwork.
Data Storage and File Management
Large Internal Memory Capacity
The GM-55 provides reliable onboard data storage for large survey projects.
| Feature | Specification |
|---|---|
| Internal Memory | Approximately 50,000 Points |
| External Storage | USB Flash Drive |
| Data Transfer | USB |
| File Export | CSV / TXT |
The USB interface allows quick transfer of survey data to office processing software.
Battery and Power Performance
Long Operating Time for Full-Day Surveying
One of the major advantages of the GM-55 is its excellent battery efficiency.
| Feature | Specification |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Operating Time | Up to 28 Hours |
| Charging Time | Approximately 4 Hours |
The extended runtime minimizes downtime and supports uninterrupted field operations.
Laser and Optical Plummet
Fast Instrument Setup
Laser Plummet Features
| Feature | Specification |
|---|---|
| Plummet Type | Laser Plummet |
| Brightness Adjustment | Available |
| Accuracy | High Precision Centering |
The laser plummet simplifies instrument setup and improves centering accuracy over survey points.
Communication and Connectivity
Flexible Field Connectivity
Communication Features
- USB Port
- Serial Communication
- Bluetooth (Optional)
- External Data Collector Compatibility
Compatible Survey Software
- Topcon MAGNET Field
- MAGNET Office
- CAD Software Platforms
- GIS Processing Systems
The GM-55 integrates smoothly with modern surveying workflows and office software solutions.
Applications of Topcon GM-55 Survey Station
Construction Layout
The GM-55 is highly effective for:
- Building layout
- Foundation staking
- Structural alignment
- Concrete formwork positioning
- Site preparation
Land Surveying
Ideal for:
- Boundary surveys
- Topographic mapping
- Elevation surveys
- Property subdivision
- Control point establishment
Civil Engineering Projects
Widely used for:
- Highway construction
- Bridge alignment
- Railway surveying
- Utility installation
- Infrastructure development
Industrial and Mining Applications
Suitable for:
- Plant layout
- Stockpile measurements
- Mining surveys
- Industrial alignment
- Monitoring applications
Advantages of the Topcon GM-55
Fast and Accurate Measurements
The advanced EDM system enables quick and reliable distance measurements for increased productivity.
Exceptional Battery Life
The extended operating time allows surveyors to complete full-day projects without frequent battery replacement.
Durable Waterproof Construction
The IP66 protection rating ensures reliable operation in difficult environmental conditions.
User-Friendly Operation
The intuitive interface simplifies training and improves efficiency for both experienced and entry-level surveyors.
Reliable Measurement Stability
The dual-axis compensator and advanced angle encoder system improve measurement consistency and accuracy.
Comparison Between Topcon GM-55 and Conventional Total Stations
| Feature | Topcon GM-55 | Conventional TS |
|---|---|---|
| Reflectorless Range | Longer | |
| Measurement Speed | Faster | |
| Waterproof Protection | IP66 | |
| Battery Runtime | Extended | |
| Data Storage | Larger | |
| USB Support | Integrated | |
| User Interface | Modern |
The GM-55 provides modern surveying capabilities while maintaining operational simplicity.
Accessories and Optional Equipment
Compatible Accessories
- Survey Tripods
- Topcon Prisms
- Prism Poles
- Data Collectors
- External Batteries
- Carrying Cases
- Bluetooth Modules
- USB Storage Devices
These accessories improve workflow flexibility for different survey environments.
Topcon MAGNET Workflow Integration
Connected Survey Data Management
The GM-55 supports integration with Topcon MAGNET software solutions.
Workflow Benefits
- Efficient field-to-office data transfer
- Cloud-based project synchronization
- CAD compatibility
- Real-time collaboration
- Simplified project management
